BT-ERBR

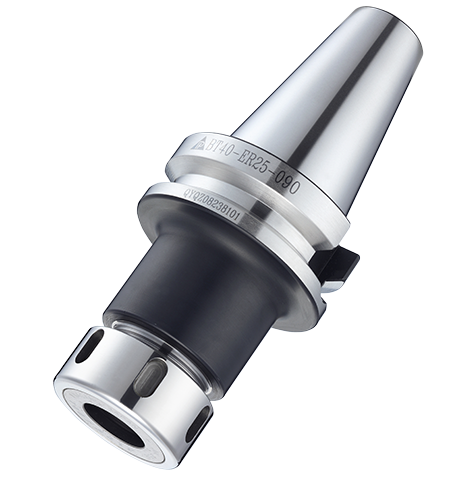

ER 高速钢珠螺帽刀把-BT

针对高速加工所设计之ERBR钢珠螺帽，可提高重复精度
通用性高，可配合各种不同的加工
全系列动平衡

動平衡 Balancing

BT30/BT40 Max.25,000 RPM Or U<= 1gmm

BT50 Max.20,000 RPM Or U<= 1gmm

BT30/BT40 Max.25,000 RPM Or U<= 1gmm

BT50 Max.20,000 RPM Or U<= 1gmm

规格书下载性能特色

Dimensions

尺寸標示與詳細規格比較

Order No. 订购编号	Range ∅d 夹持范围	∅d1	L	L1	Tool Clamping Depth L2 刀具夹持深度	Nut 螺帽	Screw 调整螺丝	Collet 筒夹	Wrench 扳手
BT30(BTT30) ER11-060BR	1.0~7.0	23.5	60	38	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT30(BTT30) ER11-075BR	1.0~7.0	23.5	75	53	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT30(BTT30) ER11-090BR	1.0~7.0	23.5	68	90	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT30(BTT30) ER11-120BR	1.0~7.0	23.5	120	98	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT30(BTT30) ER16-060BR	1.0~10.0	32	60	38	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT30(BTT30) ER16-075BR	1.0~10.0	32	75	53	29~58	CAP-ER16BR	CAP-ER16BR	ER16-HP	PHS-ER16B
BT30(BTT30) ER16-090BR	1.0~10.0	32	90	68	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT30(BTT30) ER16-120BR	1.0~10.0	32	120	98	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT30(BTT30) ER20-060BR	1.0~13.0	36	60	38	32~63	CAP-ER20BR	ER-M14	ER20-HP	ER20-HP
BT30(BTT30) ER20-075BR	1.0~13.0	36	75	53	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT30(BTT30) ER20-090BR	1.0~13.0	36	90	68	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT30(BTT30) ER20-120BR	1.0~13.0	36	120	98	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT30(BTT30) ER25-060BR	1.0~16.0	43	60	38	35~63	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT30(BTT30) ER25-075BR	1.0~16.0	43	75	53	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT30(BTT30) ER25-090BR	1.0~16.0	43	90	68	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT30(BTT30) ER25-120BR	1.0~16.0	43	120	98	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT30(BTT30) ER32-060BR	2.0~20.0	51	60	38	41~48	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT30(BTT30) ER32-075BR	2.0~20.0	51	75	53	41~63	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT30(BTT30) ER32-090BR	2.0~20.0	51	90	68	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT30(BTT30) ER32-105BR	2.0~20.0	51	105	83	41~88	CAP-ER32BR	ER-M22	ER32-HP	ER32-HP
BT30(BTT30) ER32-120BR	2.0~20.0	51	120	98	41~88	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32

Order No. 订购编号	Range ∅d 夹持范围	∅d1	L	L1	Tool Clamping Depth L2 刀具夹持深度	Nut 螺帽	Screw 调整螺丝	Collet 筒夹	Wrench 扳手
BT40(BTT40) ER11-075BR	1.0~7.0	23.5	75	48	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT40(BTT40) ER11-090BR	1.0~7.0	23.5	90	63	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT40(BTT40) ER11-120BR	1.0~7.0	23.5	120	93	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT40(BTT40) ER11-150BR	1.0~7.0	23.5	150	123	19~50	CAP-ER11BR	ER-M8	ER11-HP	PHS-ER11B
BT40(BTT40) ER16-075BR	1.0~10.0	32	75	48	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT40(BTT40) ER16-090BR	1.0~10.0	32	90	63	29~53	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT40(BTT40) ER16-120BR	1.0~10.0	32	120	93	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT40(BTT40) ER16-150BR	1.0~10.0	32	150	123	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT40(BTT40) ER16-200BR	1.0~10.0	32	200	173	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT40(BTT40) ER20-075BR	1.0~13.0	36	75	48	32~63	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT40(BTT40) ER20-090BR	1.0~13.0	36	90	63	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT40(BTT40) ER20-120BR	1.0~13.0	36	120	93	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT40(BTT40) ER20-135BR	1.0~13.0	36	135	108	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT40(BTT40) ER20-150BR	1.0~13.0	36	150	123	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT40(BTT40) ER20-200BR	1.0~13.0	36	200	173	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT40(BTT40) ER25-075BR	1.0~16.0	43	75	48	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT40(BTT40) ER25-090BR	1.0~16.0	43	90	63	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT40(BTT40) ER25-120BR	1.0~16.0	43	120	93	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT40(BTT40) ER25-150BR	1.0~16.0	43	150	123	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT40(BTT40) ER25-200BR	1.0~16.0	43	200	173	35~78	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT40(BTT40) ER32-075BR	2.0~20.0	51	75	48	41`78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT40(BTT40) ER32-090BR	2.0~20.0	51	90	63	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT40(BTT40) ER32-120BR	2.0~20.0	51	120	93	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT40(BTT40) ER32-150BR	2.0~20.0	51	150	123	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT40(BTT40) ER32-200BR	2.0~20.0	51	200	173	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32

Order No. 订购编号	Range ∅d 夹持范围	∅d1	L	L1	Tool Clamping Depth L2 刀具夹持深度	Nut 螺帽	Screw 调整螺丝	Collet 筒夹	Wrench 扳手
BT50(BTT50) ER16-105BR	1.0~10.0	32	105	67	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT50(BTT50) ER16-135BR	1.0~10.0	32	135	97	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT50(BTT50) ER16-165BR	1.0~10.0	32	165	127	29~58	CAP-ER16BR	ER-M11	ER16-HP	PHS-ER16B
BT50(BTT50) ER16-200BR	1.0~10.0	32	200	162	29~58	CAP-ER16BR	CAP-ER16BR	ER16-HP	PHS-ER16B
BT50(BTT50) ER20-105BR	1.0~13.0	36	105	67	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT50(BTT50) ER20-135BR	1.0~13.0	36	135	97	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT50(BTT50) ER20-165BR	1.0~13.0	36	165	127	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT50(BTT50) ER20-200BR	1.0~13.0	36	200	162	32~68	CAP-ER20BR	ER-M14	ER20-HP	PHS-ER20B
BT50(BTT50) ER25-105BR	1.0~16.0	43	105	67	35~73	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT50(BTT50) ER25-135BR	1.0~16.0	43	135	97	35~73	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT50(BTT50) ER25-165BR	1.0~16.0	43	165	127	35~73	CAP-ER25BR	ER-M18	ER25-HP	ER25-HP
BT50(BTT50) ER25-200BR	1.0~16.0	43	200	162	35~73	CAP-ER25BR	ER-M18	ER25-HP	PHS-ER25
BT50(BTT50) ER32-105BR	2.0~20.0	51	105	67	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT50(BTT50) ER32-135BR	2.0~20.0	51	135	97	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT50(BTT50) ER32-165BR	2.0~20.0	51	165	127	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
BT50(BTT50) ER32-200BR	2.0~20.0	51	200	162	41~78	CAP-ER32BR	ER-M22	ER32-HP	PHS-ER32
