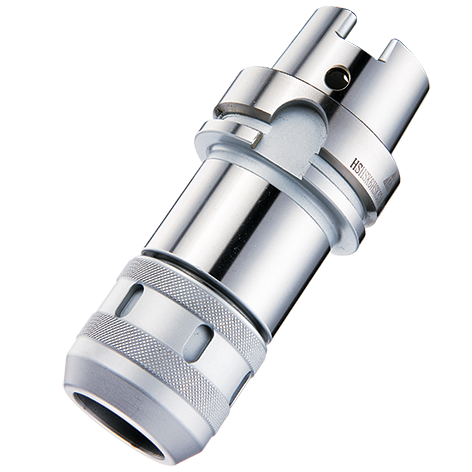

Dimensions
尺寸標示與詳細規格比較
| Order No. 订购编号 | Ød1 | ØD | M | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| HSK50A PFC25-120 | 25 | 59 | M22x1.5 | 120 | 94 | 68 | PHS-ER40 |
| Order No. 订购编号 | ∅d1 | ∅D | M | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| HSK63A PFC20-105 | 20 | 52 | M18x1.5 | 105 | 79 | 63 | PFC20 | PHS-ER32 |
| HSK63A PFC25-135 | 25 | 59 | M22x1.5 | 135 | 109 | 68 | PHS-ER40 | |
| HSK63A PFC32-135 | 32 | 69 | M28x1.5 | 135 | 109 | 77 | PFC32 | PHS-PFC32 |
| Order No. 订购编号 | ∅d1 | ∅D | M | L | L1 | Tool Clamping Depth L2 刀具夹持深度 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| HSK100A PFC20-120 | 20 | 52 | M18x1.5 | 120 | 91 | 63 | PFC20 | PHS-ER32 |
| HSK100A PFC32-135 | 25 | 59 | M22x1.5 | 135 | 106 | 68 | PHS-ER40 | |
| HSK100A PFC25-150 | 32 | 69 | M28x1.5 | 150 | 121 | 77 | PFC32 | PHS-PFC40 |
