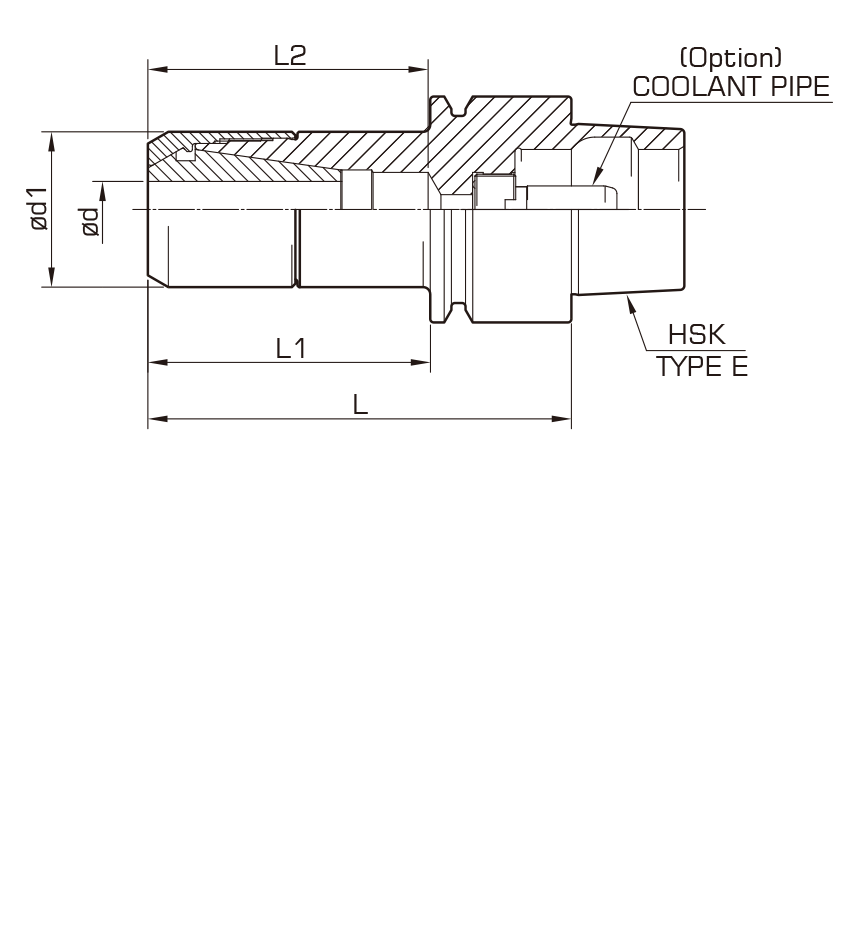

Dimensions
尺寸標示與詳細規格比較
| Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L4 刀具夹持深度 | Nut 螺帽 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| HSK25E ER16-043MS | 0.6~10.0 | 22 | 43 | 33 | max32 | CAP-ER16MS | ER16 | PHS-ER16MS |
| Order No. 订购编号 | Range ∅d 夹持范围 | ∅d1 | L | L1 | Tool Clamping Depth L4 刀具夹持深度 | Nut 螺帽 | Collet 筒夹 | Wrench 扳手 |
|---|---|---|---|---|---|---|---|---|
| HSK32E ER16-060MS | 0.6~10.0 | 22 | 60 | 40 | max40 | CAP-ER16MS | ER16 | PHS-ER16MS |
| HSK32E ER20-060MS | 1.0~10.0 | 28 | 60 | 40 | max38 | CAP-ER20MS | ER16 | PHS-ER20MS |
