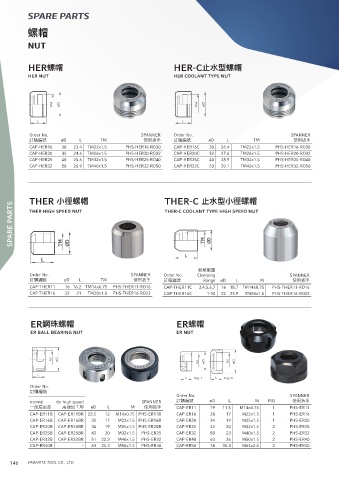

SPARE PARTS

螺帽

NUT

HER螺帽 HER-C止水型螺帽
HER NUT HER COOLANT TYPE NUT

Order No. SPANNER Order No. SPANNER
訂購編號 øD L TM 使用扳手 訂購編號 øD L TM 使用扳手
CAP-HER16 30 23.4 TM22x1.5 PHS-HER16-RO30 CAP-HER16C 30 26.4 TM22x1.5 PHS-HER16-RO30
CAP-HER20 32 24.6 TM26x1.5 PHS-HER20-RO32 CAP-HER20C 32 27.6 TM26x1.5 PHS-HER20-RO32
CAP-HER25 40 25.6 TM32x1.5 PHS-HER25-RO40 CAP-HER25C 40 28.9 TM32x1.5 PHS-HER25-RO40
CAP-HER32 50 26.9 TM40x1.5 PHS-HER32-RO50 CAP-HER32C 50 30.1 TM40x1.5 PHS-HER32-RO50

THER 小徑螺帽 THER-C 止水型小徑螺帽
SPARE PARTS
THER-C COOLANT TYPE HIGH SPEED NUT
THER HIGH SPEED NUT

鎖緊範圍
Order No. SPANNER Order No. Clamping SPANNER
訂購編號 øD L TM 使用扳手 訂購編號 Range øD L M 使用扳手
CAP-THER11 16 16.2 TM14x0.75 PHS-THER11-RO16 CAP-THER11C 3,4,5,6,7 16 18.7 TM14x0.75 PHS-THER11-RO16
CAP-THER16 22 21 TM20x1.0 PHS-THER16-RO22 CAP-THER16C 1-10 22 23.9 TM20x1.0 PHS-THER16-RO22

ER鋼珠螺帽 ER螺帽
ER BALL BEARING NUT ER NUT

Order No.
訂購編號
Order No. SPANNER
normal for high speed SPANNER 訂購編號 øD L M FIG 使用扳手
一般精密型 高速加工用 øD L M 使用扳手 CAP-ER11 19 11.5 M14x0.75 1 PHS-ER11
CAP-ER11B CAP-ER11BR 23.5 12 M14x0.75 PHS-ER11B CAP-ER16 28 17 M22x1.5 1 PHS-ER16
CAP-ER16B CAP-ER16BR 32 17 M22x1.5 PHS-ER16B CAP-ER20 34 19 M25x1.5 1 PHS-ER20
CAP-ER20B CAP-ER20BR 36 19 M25x1.5 PHS-ER20B CAP-ER25 42 20 M32x1.5 2 PHS-ER25
CAP-ER25B CAP-ER25BR 43 20 M32x1.5 PHS-ER25 CAP-ER32 50 23 M40x1.5 2 PHS-ER32
CAP-ER32B CAP-ER32BR 51 22.3 M40x1.5 PHS-ER32 CAP-ER40 63 26 M50x1.5 2 PHS-ER40
CAP-ER40B - 63 25.3 M50x1.5 PHS-ER40 CAP-ER50 78 35.3 M64x2.0 2 PHS-ER50

146 PARFAITE TOOL CO., LTD.
