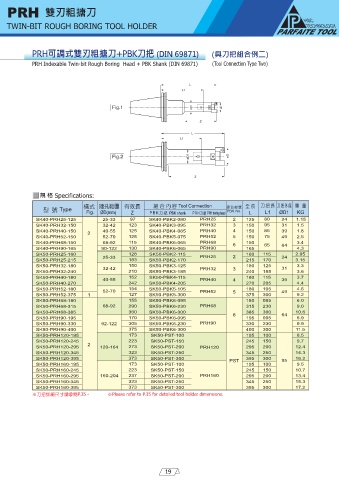

PRH 雙刃粗搪刀

TWIN-BIT ROUGH BORING TOOL HOLDER

PRH可調式雙刃粗搪刀+PBK刀把 (DIN 69871) (與刀把組合例二)
PRH Indexable Twin-bit Rough Boring Head + PBK Shank (DIN 69871) (Tool Connection Type Two)

規格 Specifications:
組合內容 Tool Connection
型 號 Type 樣式 搪孔範圍 有效長 PBK 刀把 PBK shank PRH刀頭 PRH boring head 接合型號 全長 刀把長 刀把外徑 重 量
L1
PBK No.
ØD1
Fig. ØD(mm)
KG
L
Z
SK40-PRH25-125 25-33 97 SK40-PBK2-080 PRH25 2 125 80 24 1.15
SK40-PRH32-150 32-42 123 SK40-PBK3-095 PRH32 3 150 95 31 1.5
SK40-PRH40-150 2 40-55 125 SK40-PBK4-085 PRH40 4 150 85 39 1.8
SK40-PRH52-150 52-70 125 SK40-PBK5-075 PRH52 5 150 75 49 2.5
SK40-PRH68-150 68-92 115 SK40-PBK6-065 PRH68 6 150 65 64 3.4
SK40-PRH90-165 90-122 130 SK40-PBK6-065 PRH90 165 4.3
SK50-PRH25-160 25-33 128 SK50-PBK2-115 PRH25 2 160 115 24 2.95
SK50-PRH25-215 183 SK50-PBK2-170 215 170 3.15
SK50-PRH32-180 32-42 150 SK50-PBK3-125 PRH32 3 180 125 31 3.3
SK50-PRH32-240 210 SK50-PBK3-185 240 185 3.6
SK50-PRH40-180 40-55 152 SK50-PBK4-115 PRH40 4 180 115 39 3.7
SK50-PRH40-270 242 SK50-PBK4-205 270 205 4.4
SK50-PRH52-180 52-70 154 SK50-PBK5-105 PRH52 5 180 105 49 4.6
SK50-PRH52-375 1 127 SK50-PBK5-300 375 300 9.2
SK50-PRH68-180 155 SK50-PBK6-095 180 095 6.0
SK50-PRH68-315 68-92 290 SK50-PBK6-230 PRH68 315 230 9.0
SK50-PRH68-385 360 SK50-PBK6-300 6 385 300 64 10.6
SK50-PRH90-195 170 SK50-PBK6-095 195 095 6.9
SK50-PRH90-330 92-122 305 SK50-PBK6-230 PRH90 330 230 9.9
SK50-PRH90-400 375 SK50-PBK6-300 400 300 11.5
SK50-PRH120-195 173 SK50-PST-100 195 100 8.5
SK50-PRH120-245 223 SK50-PST-150 245 150 9.7
SK50-PRH120-295 2 120-164 273 SK50-PST-200 PRH120 295 200 12.4
SK50-PRH120-345 323 SK50-PST-250 345 250 14.3
SK50-PRH120-395 373 SK50-PST-300 PST 395 300 95 16.2
SK50-PRH160-195 173 SK50-PST-100 195 100 9.5
SK50-PRH160-245 223 SK50-PST-150 245 150 10.7
SK50-PRH160-295 160-204 237 SK50-PST-200 PRH160 295 200 13.4
SK50-PRH160-345 323 SK50-PST-250 345 250 15.3
SK50-PRH160-395 373 SK50-PST-300 395 300 17.2
※刀把詳細尺寸請參閱P.35。 ※Please refer to P.35 for detailed tool holder dimensions.
