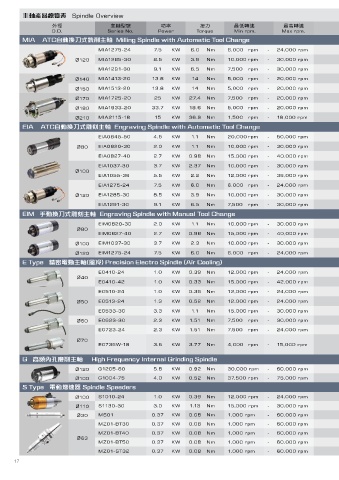

主軸產品總覽表 Spindle Overview
̮ࢰ ˴ൿۨ໮ ̌ଟ ҩɢ ௰Эᔷ஺ ௰৷ᔷ஺ ɠҪ • ഇѰҖό ͭό ٶό ࠫϣ ൿוᆗ๞˙ό
O.D. Series No. Power Torque Min rpm. Max rpm. Tool holder • Collet Vert Horiz Page Bearing Lubrication
MIA ATC自動換刀式銑削主軸 Milling Spindle with Automatic Tool Change
MIA1275-24 7.5 KW 6.0 Nm 6,000 rpm - 24,000 rpm HSK40E / BTT30 / BT30N □ □ 21

Ø120 MIA1285-30 8.5 KW 3.9 Nm 10,000 rpm - 30,000 rpm ISO30 □ □ 22
MIA1291-30 9.1 KW 6.5 Nm 7,500 rpm - 30,000 rpm HSK40E / BT30N □ □ 23
Ø140 MIA1413-20 13.8 KW 14 Nm 5,000 rpm - 20,000 rpm HSK50E / BTT30 / BT30 □ □ 24
๞ই Grease
Ø150 MIA1513-20 13.8 KW 14 Nm 5,000 rpm - 20,000 rpm HSK50E / BTT30 / BT30 □ □ 25
Ø170 MIA1725-20 25 KW 27.4 Nm 7,500 rpm - 20,000 rpm HSK63A / BTT40 / BT40 □ □ 26
Ø180 MIA1833-20 33.7 KW 18.6 Nm 5,000 rpm - 20,000 rpm HSK63A / BTT40 / BT40 □ □ 27
Ø210 MIA2115-18 15 KW 36.9 Nm 1,500 rpm - 18,000 rpm HSK63A / BTT40 / BT40 □ 28
EIA ATC自動換刀式雕刻主軸 Engraving Spindle with Automatic Tool Change
EIA0845-50 4.5 KW 1.1 Nm 20,000 rpm - 50,000 rpm HSK25E / ISO10 / 15T □ □ 31

Ø80 EIA0820-30 2.0 KW 1.1 Nm 10,000 rpm - 30,000 rpm ISO20 / S20T □ □ 32
EIA0827-40 2.7 KW 0.98 Nm 15,000 rpm - 40,000 rpm ISO20 □ □ 33
EIA1037-30 3.7 KW 2.37 Nm 10,000 rpm - 30,000 rpm HSK32E / ISO25 □ □ 34
Ø100 ๞ই Grease
EIA1055-36 5.5 KW 2.2 Nm 12,000 rpm - 36,000 rpm HSK32E / ISO25 □ □ 35
EIA1275-24 7.5 KW 6.0 Nm 6,000 rpm - 24,000 rpm BT30 / BTT30 □ □ 36
Ø120 EIA1285-30 8.5 KW 3.9 Nm 10,000 rpm - 30,000 rpm ISO30 □ □ 37
EIA1291-30 9.1 KW 6.5 Nm 7,500 rpm - 30,000 rpm HSK40E / BT30N □ □ 38
EIM 手動換刀式雕刻主軸 Engraving Spindle with Manual Tool Change
EIM0820-30 2.0 KW 1.1 Nm 10,000 rpm - 30,000 rpm ER16 □ □ 41
Ø80
EIM0827-40 2.7 KW 0.98 Nm 15,000 rpm - 40,000 rpm ER16 □ □ 42
๞ই Grease
Ø100 EIM1037-30 3.7 KW 2.3 Nm 10,000 rpm - 30,000 rpm ER20 □ □ 43
Ø120 EIM1275-24 7.5 KW 6.0 Nm 6,000 rpm - 24,000 rpm ER32 □ □ 44
E Type 精密電動主軸(風冷) Precision Electro Spindle (Air Cooling)

E0410-24 1.0 KW 0.39 Nm 12,000 rpm - 24,000 rpm ER16 □ □ 47
Ø40
E0410-42 1.0 KW 0.33 Nm 15,000 rpm - 42,000 rpm ER16 □ □ 48
E0510-24 1.0 KW 0.39 Nm 12,000 rpm - 24,000 rpm ER20 □ □ 49

Ø50 E0513-24 1.3 KW 0.52 Nm 12,000 rpm - 24,000 rpm ER20 □ □ 50
E0533-30 3.3 KW 1.1 Nm 15,000 rpm - 30,000 rpm ER25 □ □ 51 ๞ই Grease
Ø60 E0623-30 2.3 KW 1.51 Nm 7,500 rpm - 30,000 rpm ER25 □ □ 52
E0723-24 2.3 KW 1.51 Nm 7,500 rpm - 24,000 rpm ER32 □ □ 53
Ø70
E0736W-18 3.6 KW 3.77 Nm 4,000 rpm - 15,000 rpm ER32 □ □ 54

G 高頻內孔磨削主軸 High Frequency Internal Grinding Spindle
Ø120 G1205-60 5.8 KW 0.92 Nm 30,000 rpm - 60,000 rpm Ø10.5 □ 55 ذं Oil-Air
Ø100 G1004-75 4.0 KW 0.52 Nm 37,500 rpm - 75,000 rpm Ø9 □ 56 ذं Oil-Air
S Type 電動增速器 Spindle Speeders
Ø100 S1010-24 1.0 KW 0.39 Nm 12,000 rpm - 24,000 rpm ER20 □ 59
Ø110 S1130-30 3.0 KW 1.13 Nm 15,000 rpm - 30,000 rpm ER25 □ □ 59
Ø30 MS01 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 60
MZ01-BT30 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 60 ๞ই Grease
MZ01-BT40 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 60
Ø63
MZ01-BT50 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 60
MZ01-ST32 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 60
