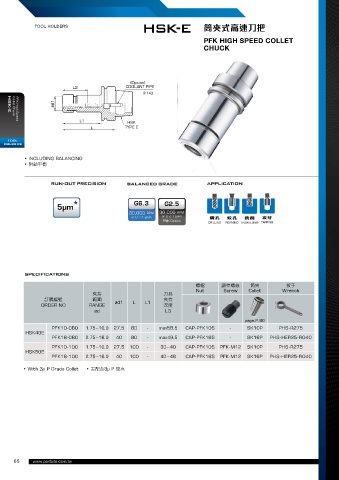

TOOL HOLDERS HSK-E 筒夾式高速刀把

PFK HIGH SPEED COLLET
CHUCK

P.143

HSK-E
Collet Chuck
PFK High Speed

TOOL
HOLDERS

• INCLUDING BALANCING
• 附動平衡

RUN-OUT PRECISION BALANCED GRADE APPLICATION

5µm G6.3 G2.5
30,000 RPM 30,000 RPM
or U ≤ 1 gmm or U ≤ 1 gmm
選配 Option

SPECIFICATIONS
螺帽 調整螺絲 筒夾 扳手
Nut Screw Collet Wrench
夾持 刀具
訂購編號 範圍 ød1 L L1 夾持
ORDER NO RANGE 深度
ød L3
page.P.80
PFK10-080 1.75~10.0 27.5 80 - max58.5 CAP-PFK10S - SK10P PHS-R275
HSK40E
PFK16-080 2.75~16.0 40 80 - max49.5 CAP-PFK16S - SK16P PHS-HER25-RO40
PFK10-100 1.75~10.0 27.5 100 - 30~40 CAP-PFK10S PFK-M12 SK10P PHS-R275
HSK50E
PFK16-100 2.75~16.0 40 100 - 40~48 CAP-PFK16S PFK-M12 SK16P PHS-HER25-RO40
• With 3µ P Grade Collet • 需配合3µ P 筒夾

65 www.parfaite.com.tw
