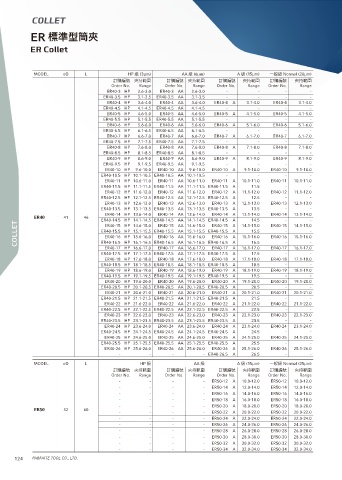

COLLET

ER 秂伛ࣳᒻ䄸

ER Collet

MODEL øD L HP 羷 (3Ŀm) AA 羷 (6Ŀm) A 羷 (15Ŀm) Ӟ膢羷 Normal (20Ŀm)
懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻
Order No. Range Order No. Range Order No. Range Order No. Range
ER40-3 HP 2.6-3.0 ER40-3 AA 2.6-3.0 - - - -
ER40-3.5 HP 3.1-3.5 ER40-3.5 AA 3.1-3.5 - - - -
ER40-4 HP 3.6-4.0 ER40-4 AA 3.6-4.0 ER40-4 A 3.1-4.0 ER40-4 3.1-4.0
ER40-4.5 HP 4.1-4.5 ER40-4.5 AA 4.1-4.5 - - - -
ER40-5 HP 4.6-5.0 ER40-5 AA 4.6-5.0 ER40-5 A 4.1-5.0 ER40-5 4.1-5.0
ER40-5.5 HP 5.1-5.5 ER40-5.5 AA 5.1-5.5 - - - -
ER40-6 HP 5.6-6.0 ER40-6 AA 5.6-6.0 ER40-6 A 5.1-6.0 ER40-6 5.1-6.0
ER40-6.5 HP 6.1-6.5 ER40-6.5 AA 6.1-6.5 - - - -
ER40-7 HP 6.6-7.0 ER40-7 AA 6.6-7.0 ER40-7 A 6.1-7.0 ER40-7 6.1-7.0
ER40-7.5 HP 7.1-7.5 ER40-7.5 AA 7.1-7.5 - - - -
ER40-8 HP 7.6-8.0 ER40-8 AA 7.6-8.0 ER40-8 A 7.1-8.0 ER40-8 7.1-8.0
ER40-8.5 HP 8.1-8.5 ER40-8.5 AA 8.1-8.5 - - - -
ER40-9 HP 8.6-9.0 ER40-9 AA 8.6-9.0 ER40-9 A 8.1-9.0 ER40-9 8.1-9.0
ER40-9.5 HP 9.1-9.5 ER40-9.5 AA 9.1-9.5 - - - -
ER40-10 HP 9.6-10.0 ER40-10 AA 9.6-10.0 ER40-10 A 9.1-10.0 ER40-10 9.1-10.0
ER40-10.5 HP 10.1-10.5 ER40-10.5 AA 10.1-10.5 - - - -
ER40-11 HP 10.6-11.0 ER40-11 AA 10.6-11.0 ER40-11 A 10.1-11.0 ER40-11 10.1-11.0
ER40-11.5 HP 11.1-11.5 ER40-11.5 AA 11.1-11.5 ER40-11.5 A 11.5 - -
ER40-12 HP 11.6-12.0 ER40-12 AA 11.6-12.0 ER40-12 A 11.1-12.0 ER40-12 11.1-12.0
ER40-12.5 HP 12.1-12.5 ER40-12.5 AA 12.1-12.5 ER40-12.5 A 12.5 - -
ER40-13 HP 12.6-13.0 ER40-13 AA 12.6-13.0 ER40-13 A 12.1-13.0 ER40-13 12.1-13.0
ER40-13.5 HP 13.1-13.5 ER40-13.5 AA 13.1-13.5 ER40-13.5 A 13.5 - -
ER40-14 HP 13.6-14.0 ER40-14 AA 13.6-14.0 ER40-14 A 13.1-14.0 ER40-14 13.1-14.0
ER40 41 46 ER40-14.5 HP 14.1-14.5 ER40-14.5 AA 14.1-14.5 ER40-14.5 A 14.5 - -
COLLET ER40-15.5 HP 15.1-15.5 ER40-15.5 AA 14.6-15.0 ER40-15 A 14.1-15.0 ER40-15 - 14.1-15.0 -
ER40-15
ER40-15 HP 14.6-15.0
AA 15.1-15.5 ER40-15.5
15.5
A
ER40-16
ER40-16
AA 15.6-16.0
ER40-16
A
ER40-16 HP 15.6-16.0
15.1-16.0
15.1-16.0
16.5
ER40-16.5 HP 16.1-16.5 ER40-16.5
A
ER40-17
AA 16.6-17.0
ER40-17 HP 16.6-17.0 ER40-17 AA 16.1-16.5 ER40-16.5 A 16.1-17.0 ER40-17 - 16.1-17.0 -
ER40-17.5 HP 17.1-17.5 ER40-17.5 AA 17.1-17.5 ER40-17.5 A 17.5 - -
ER40-18 HP 17.6-18.0 ER40-18 AA 17.6-18.0 ER40-18 A 17.1-18.0 ER40-18 17.1-18.0
ER40-18.5 HP 18.1-18.5 ER40-18.5 AA 18.1-18.5 ER40-18.5 A 18.5 - -
ER40-19 HP 18.6-19.0 ER40-19 AA 18.6-19.0 ER40-19 A 18.1-19.0 ER40-19 18.1-19.0
ER40-19.5 HP 19.1-19.5 ER40-19.5 AA 19.1-19.5 ER40-19.5 A 19.5 - -
ER40-20 HP 19.6-20.0 ER40-20 AA 19.6-20.0 ER40-20 A 19.1-20.0 ER40-20 19.1-20.0
ER40-20.5 HP 20.1-20.5 ER40-20.5 AA 20.1-20.5 ER40-20.5 A 20.5 - -
ER40-21 HP 20.6-21.0 ER40-21 AA 20.6-21.0 ER40-21 A 20.1-21.0 ER40-21 20.1-21.0
ER40-21.5 HP 21.1-21.5 ER40-21.5 AA 21.1-21.5 ER40-21.5 A 21.5 - -
ER40-22 HP 21.6-22.0 ER40-22 AA 21.6-22.0 ER40-22 A 21.1-22.0 ER40-22 21.1-22.0
ER40-22.5 HP 22.1-22.5 ER40-22.5 AA 22.1-22.5 ER40-22.5 A 22.5 - -
ER40-23 HP 22.6-23.0 ER40-23 AA 22.6-23.0 ER40-23 A 22.1-23.0 ER40-23 22.1-23.0
ER40-23.5 HP 23.1-23.5 ER40-23.5 AA 23.1-23.5 ER40-23.5 A 23.5 - -
ER40-24 HP 23.6-24.0 ER40-24 AA 23.6-24.0 ER40-24 A 23.1-24.0 ER40-24 23.1-24.0
ER40-24.5 HP 24.1-24.5 ER40-24.5 AA 24.1-24.5 ER40-24.5 A 24.5 - -
ER40-25 HP 24.6-25.0 ER40-25 AA 24.6-25.0 ER40-25 A 24.1-25.0 ER40-25 24.1-25.0
ER40-25.5 HP 25.1-25.5 ER40-25.5 AA 25.1-25.5 ER40-25.5 A 25.5 - -
ER40-26 HP 25.6-26.0 ER40-26 AA 25.6-26.0 ER40-26 A 25.1-26.0 ER40-26 25.1-26.0
- - - - ER40-26.5 A 26.5 - -
MODEL øD L HP 羷 AA 羷 A 羷 (15Ŀm) Ӟ膢羷 Normal (25Ŀm)
懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻
Order No. Range Order No. Range Order No. Range Order No. Range
- - - - ER50-12 A 10.0-12.0 ER50-12 10.0-12.0
- - - - ER50-14 A 12.0-14.0 ER50-14 12.0-14.0
- - - - ER50-16 A 14.0-16.0 ER50-16 14.0-16.0
- - - - ER50-18 A 16.0-18.0 ER50-18 16.0-18.0
- - - - ER50-20 A 18.0-20.0 ER50-20 18.0-20.0
ER50 52 60
- - - - ER50-22 A 20.0-22.0 ER50-22 20.0-22.0
- - - - ER50-24 A 22.0-24.0 ER50-24 22.0-24.0
- - - - ER50-26 A 24.0-26.0 ER50-26 24.0-26.0
- - - - ER50-28 A 26.0-28.0 ER50-28 26.0-28.0
- - - - ER50-30 A 28.0-30.0 ER50-30 28.0-30.0
- - - - ER50-32 A 30.0-32.0 ER50-32 30.0-32.0
- - - - ER50-34 A 32.0-34.0 ER50-34 32.0-34.0
