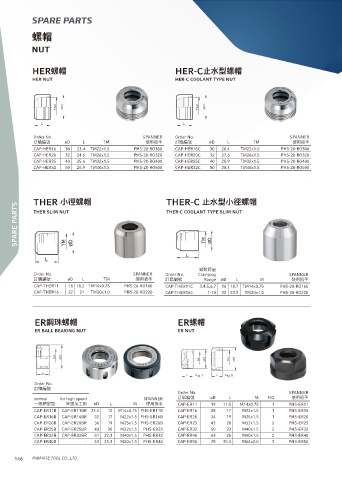

SPARE PARTS

ᣪଌ

NUT

HERᣪଌ HER-Cྊ࿜ࣳᣪଌ
HER NUT HER-C COOLANT TYPE NUT

Order No. SPANNER Order No. SPANNER
懪搳翥蒈 øD L TM ֵአ瞘ಋ 懪搳翥蒈 øD L TM ֵአ瞘ಋ
CAP-HER16 30 23.4 TM22x1.5 PHS-20-RO300 CAP-HER16C 30 26.4 TM22x1.5 PHS-20-RO300
CAP-HER20 32 24.6 TM26x1.5 PHS-20-RO320 CAP-HER20C 32 27.6 TM26x1.5 PHS-20-RO320
CAP-HER25 40 25.6 TM32x1.5 PHS-20-RO400 CAP-HER25C 40 28.9 TM32x1.5 PHS-20-RO400
CAP-HER32 50 26.9 TM40x1.5 PHS-20-RO500 CAP-HER32C 50 30.1 TM40x1.5 PHS-20-RO500

THER ੜ䕩ᣪଌ THER-C ྊ࿜ࣳੜ䕩ᣪଌ
SPARE PARTS
THER-C COOLANT TYPE SLIM NUT
THER SLIM NUT

森姴塅瑻
Order No. SPANNER Order No. Clamping SPANNER
懪搳翥蒈 øD L TM ֵአ瞘ಋ 懪搳翥蒈 Range øD L M ֵአ瞘ಋ
CAP-THER11 16 16.2 TM14x0.75 PHS-20-RO160 CAP-THER11C 3,4,5,6,7 16 18.7 TM14x0.75 PHS-20-RO160
CAP-THER16 22 21 TM20x1.0 PHS-20-RO220 CAP-THER16C 1-10 22 23.9 TM20x1.0 PHS-20-RO220

ER桗ቐᣪଌ ERᣪଌ
ER BALL BEARING NUT ER NUT

Order No.
懪搳翥蒈
Order No. SPANNER
normal for high speed SPANNER 懪搳翥蒈 øD L M FIG ֵአ瞘ಋ
Ӟ膢羊ੂࣳ ṛ蝧ےૡአ øD L M ֵአ瞘ಋ CAP-ER11 19 11.5 M14x0.75 1 PHS-ER11
CAP-ER11B CAP-ER11BR 23.5 12 M14x0.75 PHS-ER11B CAP-ER16 28 17 M22x1.5 1 PHS-ER16
CAP-ER16B CAP-ER16BR 32 17 M22x1.5 PHS-ER16B CAP-ER20 34 19 M25x1.5 1 PHS-ER20
CAP-ER20B CAP-ER20BR 36 19 M25x1.5 PHS-ER20B CAP-ER25 42 20 M32x1.5 2 PHS-ER25
CAP-ER25B CAP-ER25BR 43 20 M32x1.5 PHS-ER25 CAP-ER32 50 23 M40x1.5 2 PHS-ER32
CAP-ER32B CAP-ER32BR 51 22.3 M40x1.5 PHS-ER32 CAP-ER40 63 26 M50x1.5 2 PHS-ER40
CAP-ER40B - 63 25.3 M50x1.5 PHS-ER40 CAP-ER50 78 35.3 M64x2.0 2 PHS-ER50
