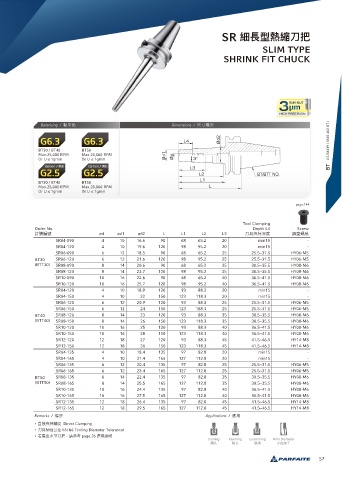

SR 奞裾ࣳ籆婘ڏ
SLIM TYPE
SHRINK FIT CHUCK
BT JIS B6339 ( MAS 403 BT )
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
BT30 / BT40 BT50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm
page.144
Tool Clamping
Order No. Depth L4 Screw
懪搳翥蒈 ød ød1 ød2 L L1 L2 L3 ڏٍ䄸瞱窼ଶ 藲碉ᣪ妟
SR04-090 4 10 16.6 90 68 65.2 20 min15 -
SR04-120 4 10 19.6 120 98 95.2 20 min15 -
SR06-090 6 12 18.5 90 68 65.2 25 25.5~31.5 HY06-M5
BT30 SR06-120 6 12 21.6 120 98 95.2 25 25.5~31.5 HY06-M5
(BTT30) SR08-090 8 14 20.6 90 68 65.2 35 30.5~35.5 HY08-M6
SR08-120 8 14 23.7 120 98 95.2 35 30.5~35.5 HY08-M6
SR10-090 10 16 22.6 90 68 65.2 40 36.5~41.5 HY08-M6
SR10-120 10 16 25.7 120 98 95.2 40 36.5~41.5 HY08-M6
SR04-120 4 10 18.9 120 93 88.3 20 min15 -
SR04-150 4 10 22 150 123 118.3 20 min15 -
SR06-120 6 12 20.9 120 93 88.3 25 25.5~31.5 HY06-M5
SR06-150 6 12 24 150 123 188.3 25 25.5~31.5 HY06-M5
BT40 SR08-120 8 14 23 120 93 88.3 35 30.5~35.5 HY08-M6
(BTT40) SR08-150 8 14 26 150 123 118.3 35 30.5~35.5 HY08-M6
SR10-120 10 16 25 120 93 88.3 40 36.5~41.5 HY08-M6
SR10-150 10 16 28 150 123 118.3 40 36.5~41.5 HY08-M6
SR12-120 12 18 27 120 93 88.3 45 41.5~46.5 HY14-M8
SR12-150 12 18 30 150 123 118.3 45 41.5~46.5 HY14-M8
SR04-135 4 10 18.4 135 97 82.8 20 min15 -
SR04-165 4 10 21.4 165 127 112.8 20 min15 -
SR06-135 6 12 20.4 135 97 82.8 25 25.5~31.5 HY06-M5
SR06-165 6 12 23.4 165 127 112.8 25 25.5~31.5 HY06-M5
BT50 SR08-135 8 14 22.4 135 97 82.8 35 30.5~35.5 HY08-M6
(BTT50) SR08-165 8 14 25.5 165 127 112.8 35 30.5~35.5 HY08-M6
SR10-135 10 16 24.4 135 97 82.8 40 36.5~41.5 HY08-M6
SR10-165 10 16 27.5 165 127 112.8 40 36.5~41.5 HY08-M6
SR12-135 12 18 26.4 135 97 82.8 45 41.5~46.5 HY14-M8
SR12-165 12 18 29.5 165 127 112.8 45 41.5~46.5 HY14-M8
Remarks / 猋戢 Applications / 䛑አ
• ፗ矑䄸瞱羊ଶ Direct Clamping
• ڏٍຢ䕩獍癩 h6( h6 Tooling Diameter Tolerance)
• 舙襑ڊࣳڏ牧藶㷢ᘍ page.26 螡አ藯ก
Drilling Reaming Endmilling Mini Diameter
槑 柖 柮獬 ੜ䕩ےૡ
