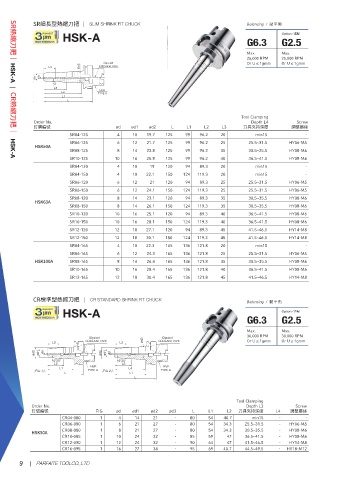

Page 10 - 2023三合一刀把

SR細長型熱縮刀把 ｜ SLIM SHRINK FIT CHUCK Balancing / 動平衡
HSK-A G6.3 Option／選配
G2.5

Max. Max.
25,000 RPM 25,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm

SR熱縮刀把｜ HSK-A |

Tool Clamping
Order No. Depth L4 Screw
訂購編號 ød ød1 ød2 L L1 L2 L3 刀具夾持深度 調整螺絲
SR04-125 4 10 19.7 125 99 96.2 20 min15 -
CR熱縮刀把｜
SR06-125 6 12 21.7 125 99 96.2 25 25.5~31.5 HY06-M5
HSK50A
SR08-125 8 14 23.8 125 99 96.2 35 30.5~35.5 HY08-M6
SR10-125 10 16 25.8 125 99 96.2 40 36.5~41.5 HY08-M6
HSK-A
SR04-120 4 10 19 120 94 89.3 20 min15 -
SR04-150 4 10 22.1 150 124 119.3 20 min15 -
SR06-120 6 12 21 120 94 89.3 25 25.5~31.5 HY06-M5
SR06-150 6 12 24.1 150 124 119.3 25 25.5~31.5 HY06-M5
SR08-120 8 14 23.1 120 94 89.3 35 30.5~35.5 HY08-M6
HSK63A
SR08-150 8 14 26.1 150 124 119.3 35 30.5~35.5 HY08-M6
SR10-120 10 16 25.1 120 94 89.3 40 36.5~41.5 HY08-M6
SR10-150 10 16 28.1 150 124 119.3 40 36.5~41.5 HY08-M6
SR12-120 12 18 27.1 120 94 89.3 45 41.5~46.5 HY14-M8
SR12-150 12 18 30.1 150 124 119.3 45 41.5~46.5 HY14-M8
SR04-165 4 10 22.3 165 136 121.8 20 min15 -
SR06-165 6 12 24.3 165 136 121.8 25 25.5~31.5 HY06-M5
HSK100A SR08-165 8 14 26.4 165 136 121.8 35 30.5~35.5 HY08-M6
SR10-165 10 16 28.4 165 136 121.8 40 36.5~41.5 HY08-M6
SR12-165 12 18 30.4 165 136 121.8 45 41.5~46.5 HY14-M8

CR標準型熱縮刀把 ｜ CR STANDARD SHRINK FIT CHUCK Balancing / 動平衡
HSK-A Option／選配
G6.3 G2.5

Max. Max.
30,000 RPM 30,000 RPM
(Option) (Option)
L3 COOLANT PIPE L3 ød3 COOLANT PIPE Or U ≤ 1gmm Or U ≤ 1gmm
ød2 ød1 ød ød2 ød1 ød
4°30' 4°30'
L2 L2
L1 HSK L4 HSK
FIG.1 TYPE A FIG.2 TYPE A
L L1
L

Tool Clamping
Order No. Depth L3 Screw
訂購編號 FIG ød ød1 ød2 ød3 L L1 L2 刀具夾持深度 L4 調整螺絲
CR04-080 1 4 14 21 - 80 54 40.7 min15 - -
CR06-080 1 6 21 27 - 80 54 34.3 25.5~31.5 - HY06-M5
CR08-080 1 8 21 27 - 80 54 34.3 30.5~35.5 - HY08-M6
HSK50A
CR10-085 1 10 24 32 - 85 59 47 36.5~41.5 - HY08-M6
CR12-090 1 12 24 32 - 90 64 47 41.5~46.5 - HY14-M8
CR16-095 1 16 27 34 - 95 69 40.7 44.5~49.5 - HY18-M12
