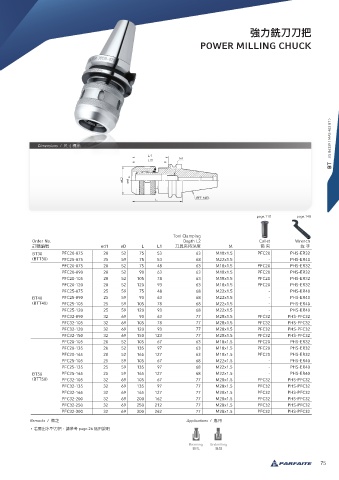

P. 77
強力銑刀刀把
POWER MILLING CHUCK
BT JIS B6339 ( MAS 403 BT )
Dimensions / 尺寸標示
page.118 page.148
Tool Clamping
Order No. Depth L2 Collet Wrench
訂購編號 ød1 øD L L1 刀具夾持深度 M 筒 夾 扳 手
BT30 PFC20-075 20 52 75 53 63 M18x1.5 PFC20 PHS-ER32
(BTT30) PFC25-075 25 59 75 53 68 M22x1.5 - PHS-ER40
PFC20-075 20 52 75 48 63 M18x1.5 PFC20 PHS-ER32
PFC20-090 20 52 90 63 63 M18x1.5 PFC20 PHS-ER32
PFC20-105 20 52 105 78 63 M18x1.5 PFC20 PHS-ER32
PFC20-120 20 52 120 93 63 M18x1.5 PFC20 PHS-ER32
PFC25-075 25 59 75 48 68 M22x1.5 - PHS-ER40
BT40 PFC25-090 25 59 90 63 68 M22x1.5 - PHS-ER40
(BTT40) PFC25-105 25 59 105 78 68 M22x1.5 - PHS-ER40
PFC25-120 25 59 120 93 68 M22x1.5 - PHS-ER40
PFC32-090 32 69 90 63 77 M28x1.5 PFC32 PHS-PFC32
PFC32-105 32 69 105 78 77 M28x1.5 PFC32 PHS-PFC32
PFC32-120 32 69 120 93 77 M28x1.5 PFC32 PHS-PFC32
PFC32-150 32 69 150 123 77 M28x1.5 PFC32 PHS-PFC32
PFC20-105 20 52 105 67 63 M18x1.5 PFC20 PHS-ER32
PFC20-135 20 52 135 97 63 M18x1.5 PFC20 PHS-ER32
PFC20-165 20 52 165 127 63 M18x1.5 PFC20 PHS-ER32
PFC25-105 25 59 105 67 68 M22x1.5 - PHS-ER40
PFC25-135 25 59 135 97 68 M22x1.5 - PHS-ER40
BT50 PFC25-165 25 59 165 127 68 M22x1.5 - PHS-ER40
(BTT50) PFC32-105 32 69 105 67 77 M28x1.5 PFC32 PHS-PFC32
PFC32-135 32 69 135 97 77 M28x1.5 PFC32 PHS-PFC32
PFC32-165 32 69 165 127 77 M28x1.5 PFC32 PHS-PFC32
PFC32-200 32 69 200 162 77 M28x1.5 PFC32 PHS-PFC32
PFC32-250 32 69 250 212 77 M28x1.5 PFC32 PHS-PFC32
PFC32-300 32 69 300 262 77 M28x1.5 PFC32 PHS-PFC32
Remarks / 備註 Applications / 應用
• 若需出水型刀把，請參考 page.26 選用說明
Reaming Endmilling
鉸孔 銑削
75
