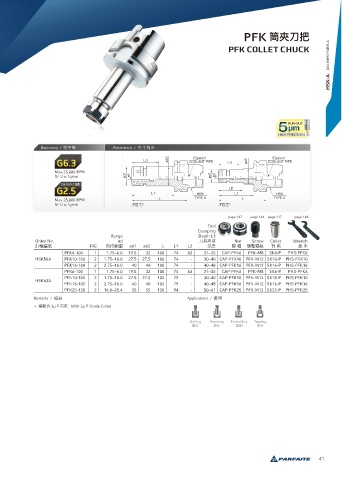

Page 43 - 2021刀把目錄
P. 43
PFK ᒻ䄸ڏ
HSK-A DIN 69893 FORM A
PFK COLLET CHUCK
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈
Max.25,000 RPM
Or U ≤ 1gmm
Max.25,000 RPM
Or U ≤ 1gmm
page.147 page.144 page.117 page.148
Tool
Clamping
Range Depth L3
Order No. ød ڏٍ䄸瞱 Nut Screw Collet Wrench
懪搳翥蒈 FIG 䄸瞱塅瑻 ød1 ød2 L L1 L2 窼ଶ ᣪ ଌ 藲碉ᣪ妟 ᒻ 䄸 瞘 ಋ
PFK6-100 1 1.75~6.0 19.5 32 100 74 63 21~35 CAP-PFK6 PFK-M8 SK6-P PHS-PFK6
HSK50A PFK10-100 2 1.75~10.0 27.5 27.5 100 74 - 30~40 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
PFK16-100 2 2.75~16.0 40 40 100 74 - 40~48 CAP-PFK16 PFK-M12 SK16-P PHS-PFK16
PFK6-100 1 1.75~6.0 19.5 32 100 74 63 21~35 CAP-PFK6 PFK-M8 SK6-P PHS-PFK6
PFK10-105 2 1.75~10.0 27.5 27.5 105 79 - 30~40 CAP-PFK10 PFK-M12 SK10-P PHS-PFK10
HSK63A
PFK16-105 2 2.75~16.0 40 40 105 79 - 40~48 CAP-PFK16 PFK-M12 SK16-P PHS-PFK16
PFK25-120 2 16.0~25.4 55 55 120 94 - 50~61 CAP-PFK25 PFK-M12 SK25-P PHS-PFK25
Remarks / 猋戢 Applications / 䛑አ
• 襑蟴ݳ 3µ P ᒻ䄸 With 3µ P Grade Collet
Drilling Reaming Endmilling Tapping
槑 柖 柮獬 硭粤
41
