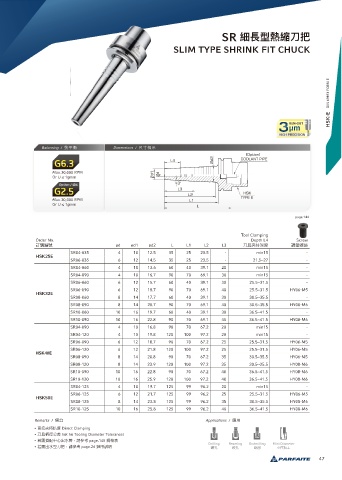

SR 奞裾ࣳ籆婘ڏ
SLIM TYPE SHRINK FIT CHUCK
HSK-E DIN 69893 FORM E
Balancing / 㵕ଘᤍ Dimensions / 疳ੑ秂纈
Max.30,000 RPM
Or U ≤ 1gmm
Max.30,000 RPM
Or U ≤ 1gmm
page.144
Tool Clamping
Order No. Depth L4 Screw
懪搳翥蒈 ød ød1 ød2 L L1 L2 L3 ڏٍ䄸瞱窼ଶ 藲碉ᣪ妟
SR04-035 4 10 12.5 35 25 23.5 - min15 -
HSK25E
SR06-035 6 12 14.5 35 25 23.5 - 21.5~27 -
SR04-060 4 10 13.6 60 40 39.1 20 min15 -
SR04-090 4 10 16.7 90 70 69.1 30 min15 -
SR06-060 6 12 15.7 60 40 39.1 30 25.5~31.5 -
SR06-090 6 12 18.7 90 70 69.1 40 25.5~31.5 HY06-M5
HSK32E
SR08-060 8 14 17.7 60 40 39.1 30 30.5~35.5 -
SR08-090 8 14 20.7 90 70 69.1 40 30.5~35.5 HY08-M6
SR10-060 10 16 19.7 60 40 39.1 30 36.5~41.5 -
SR10-090 10 16 22.8 90 70 69.1 45 36.5~41.5 HY08-M6
SR04-090 4 10 16.8 90 70 67.2 20 min15 -
SR04-120 4 10 19.8 120 100 97.2 20 min15 -
SR06-090 6 12 18.7 90 70 67.2 25 25.5~31.5 HY06-M5
SR06-120 6 12 21.8 120 100 97.2 25 25.5~31.5 HY06-M5
HSK40E
SR08-090 8 14 20.8 90 70 67.2 35 30.5~35.5 HY06-M5
SR08-120 8 14 23.9 120 100 97.2 35 30.5~35.5 HY08-M6
SR10-090 10 16 22.8 90 70 67.2 40 36.5~41.5 HY08-M6
SR10-120 10 16 25.9 120 100 97.2 40 36.5~41.5 HY08-M6
SR04-125 4 10 19.7 125 99 96.2 20 min15 -
SR06-125 6 12 21.7 125 99 96.2 25 25.5~31.5 HY06-M5
HSK50E
SR08-125 8 14 23.8 125 99 96.2 35 30.5~35.5 HY08-M6
SR10-125 10 16 25.8 125 99 96.2 40 36.5~41.5 HY08-M6
Remarks / 猋戢 Applications / 䛑አ
• ፗ矑䄸瞱羊ଶ Direct Clamping
• ڏٍຢ䕩獍癩 h6( h6 Tooling Diameter Tolerance)
• 舙襑砇蟴Ӿஞڊᓕ牧藶㷢ᘍ page.145 憒໒蔭 Drilling Reaming Endmilling Mini Diameter
• 舙襑ڊࣳڏ牧藶㷢ᘍ page.26 螡አ藯ก 槑 柖 柮獬 ੜ䕩ےૡ
