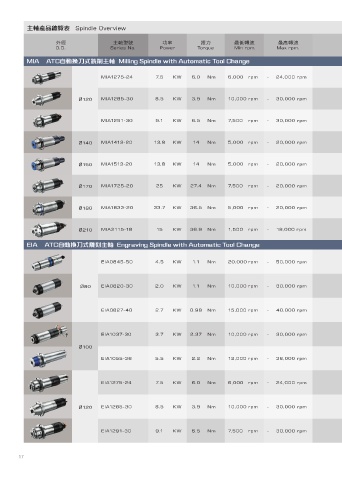

主軸產品總覽表   Spindle Overview

                     ̮ࢰ                   ˴ൿۨ໮             ̌ଟ            ҩɢ          ௰Эᔷ஺            ௰৷ᔷ஺                                      ɠҪ • ഇѰҖό                  ͭό           ٶό             ࠫϣ                ൿוᆗ๞˙ό
                     O.D.               Series No.        Power         Torque       Min rpm.       Max rpm.                                 Tool holder • Collet         Vert         Horiz         Page            Bearing Lubrication

           MIA    ATC自動換刀式銑削主軸  Milling Spindle with Automatic Tool Change


                                     MIA1275-24          7.5   KW     6.0   Nm     6,000 rpm     -  24,000 rpm                        HSK40E / BTT30 / BT30N               □             □            23



                             Ø120    MIA1285-30          8.5   KW     3.9  Nm      10,000 rpm    -  30,000 rpm                        ISO30                                □             □            24


                                     MIA1291-30          9.1   KW     6.5  Nm      7,500 rpm     -  30,000 rpm                        HSK40E / BT30N                       □             □            25



                             Ø140    MIA1413-20         13.8   KW     14   Nm      5,000  rpm    -  20,000 rpm                        HSK50E / BTT30 / BT30                □            □             26

                                                                                                                                                                                                                        ๞ই Grease
                             Ø150    MIA1513-20         13.8   KW     14   Nm      5,000   rpm   -  20,000 rpm                        HSK50E / BTT30 / BT30                □            □             27



                             Ø170    MIA1725-20          25    KW    27.4  Nm      7,500   rpm   -  20,000 rpm                        HSK63A / BTT40 / BT40                □            □             28



                             Ø180    MIA1833-20         33.7   KW    36.5  Nm      5,000   rpm   -  20,000 rpm                        HSK63A / BTT40 / BT40                □            □             29



                             Ø210    MIA2115-18          15    KW    36.9  Nm      1,500   rpm   -  18,000 rpm                        HSK63A / BTT40 / BT40                             □             30

           EIA    ATC自動換刀式雕刻主軸  Engraving Spindle with Automatic Tool Change


                                     EIA0845-50          4.5   KW     1.1  Nm      20,000 rpm    -  50,000 rpm                        HSK25E / ISO10 / 15T                 □            □             33




                              Ø80    EIA0820-30          2.0   KW     1.1  Nm      10,000 rpm    -  30,000 rpm                        ISO20 / S20T                         □            □             34



                                     EIA0827-40          2.7   KW    0.98  Nm      15,000 rpm    -  40,000 rpm                        ISO20                                □            □             35



                                     EIA1037-30          3.7   KW    2.37  Nm      10,000 rpm    -  30,000 rpm                        HSK32E / ISO25                       □            □             36

                             Ø100                                                                                                                                                                                       ๞ই Grease

                                     EIA1055-36          5.5   KW     2.2  Nm      12,000 rpm    -  36,000 rpm                        HSK32E / ISO25                       □            □             37



                                     EIA1275-24          7.5   KW     6.0   Nm     6,000 rpm     -  24,000 rpm                        BT30 / BTT30                         □            □             38



                             Ø120    EIA1285-30          8.5   KW     3.9  Nm      10,000 rpm    -  30,000 rpm                        ISO30                                □            □             39




                                     EIA1291-30          9.1   KW     6.5  Nm      7,500 rpm     -  30,000 rpm                        HSK40E / BT30N                       □            □             40
