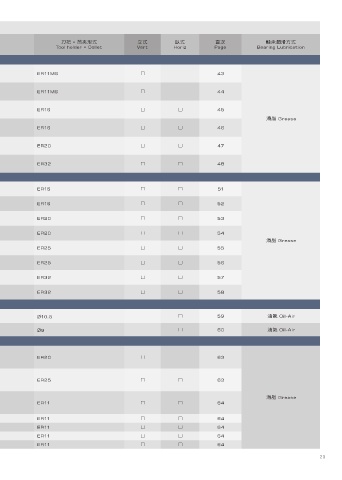

主軸產品總覽表 Spindle Overview

̮ࢰ ˴ൿۨ໮ ̌ଟ ҩɢ ௰Эᔷ஺ ௰৷ᔷ஺ ɠҪ • ഇѰҖό ͭό ٶό ࠫϣ ൿוᆗ๞˙ό
O.D. Series No. Power Torque Min rpm. Max rpm. Tool holder • Collet Vert Horiz Page Bearing Lubrication
EIM 手動換刀式雕刻主軸 Engraving Spindle with Manual Tool Change

Ø61.9 EIM0609-70 0.9 KW 0.128 Nm 30,000 rpm - 70,000 rpm ER11MS □ 43

Ø70 EIM0711-50 1.1 KW 0.36 Nm 15,000 rpm - 50,000 rpm ER11MS □ 44

EIM0820-30 2.0 KW 1.1 Nm 10,000 rpm - 30,000 rpm ER16 □ □ 45
Ø80 ๞ই Grease
EIM0827-40 2.7 KW 0.98 Nm 15,000 rpm - 40,000 rpm ER16 □ □ 46

Ø100 EIM1037-30 3.7 KW 2.3 Nm 10,000 rpm - 30,000 rpm ER20 □ □ 47

Ø120 EIM1275-24 7.5 KW 6.0 Nm 6,000 rpm - 24,000 rpm ER32 □ □ 48

E Type 精密電動主軸(風冷) Precision Electro Spindle (Air Cooling)

E0410-24 1.0 KW 0.39 Nm 12,000 rpm - 24,000 rpm ER16 □ □ 51
Ø40
E0410-42 1.0 KW 0.33 Nm 15,000 rpm - 42,000 rpm ER16 □ □ 52

E0510-24 1.0 KW 0.39 Nm 12,000 rpm - 24,000 rpm ER20 □ □ 53

Ø50 E0513-24 1.3 KW 0.52 Nm 12,000 rpm - 24,000 rpm ER20 □ □ 54
๞ই Grease
E0533-30 3.3 KW 1.1 Nm 15,000 rpm - 30,000 rpm ER25 □ □ 55

Ø60 E0623-30 2.3 KW 1.51 Nm 7,500 rpm - 30,000 rpm ER25 □ □ 56

E0723-24 2.3 KW 1.51 Nm 7,500 rpm - 24,000 rpm ER32 □ □ 57
Ø70
E0736W-18 3.6 KW 3.77 Nm 4,000 rpm - 15,000 rpm ER32 □ □ 58
G 高頻內孔磨削主軸 High Frequency Internal Grinding Spindle

Ø120 G1205-60 5.8 KW 0.92 Nm 30,000 rpm - 60,000 rpm Ø10.5 □ 59 ذं Oil-Air

Ø100 G1004-75 4.0 KW 0.52 Nm 37,500 rpm - 75,000 rpm Ø9 □ 60 ذं Oil-Air
S Type 電動增速器 Spindle Speeders

Ø100 S1010-24 1.0 KW 0.39 Nm 12,000 rpm - 24,000 rpm ER20 □ 63

Ø110 S1130-30 3.0 KW 1.13 Nm 15,000 rpm - 30,000 rpm ER25 □ □ 63

๞ই Grease
Ø30 MS01 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 64

MZ01-BT30 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 64
MZ01-BT40 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 64
Ø63
MZ01-BT50 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 64
MZ01-ST32 0.37 KW 0.08 Nm 1,000 rpm - 60,000 rpm ER11 □ □ 64

20
