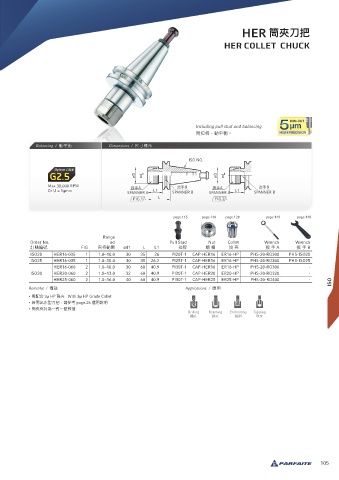

HER 筒夾刀把

HER COLLET CHUCK

Including pull stud and balancing.
附拉桿，動平衡。
Balancing / 動平衡 Dimensions / 尺寸標示

Max.30,000 RPM
Or U ≤ 1gmm

page.115 page.146 page.120 page.149 page.148

Range
Order No. ød Pull Stud Nut Collet Wrench Wrench
訂購編號 FIG 夾持範圍 ød1 L L1 拉桿 螺 帽 筒 夾 扳 手 A 扳 手 B
ISO20 HER16-035 1 1.0~10.0 30 35 26 PI20T-1 CAP-HER16 ER16-HP PHS-20-RO300 PHS-ISO20
ISO25 HER16-035 1 1.0~10.0 30 35 26.2 PI25T-1 CAP-HER16 ER16-HP PHS-20-RO300 PHS-ISO25
HER16-060 2 1.0~10.0 30 60 40.9 PI30T-1 CAP-HER16 ER16-HP PHS-20-RO300 -
ISO30 HER20-060 2 1.0~13.0 32 60 40.9 PI30T-1 CAP-HER20 ER20-HP PHS-20-RO320 -
HER25-060 2 1.0~16.0 40 60 40.9 PI30T-1 CAP-HER25 ER25-HP PHS-20-RO400 - ISO
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為一對一整數值
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙

105
