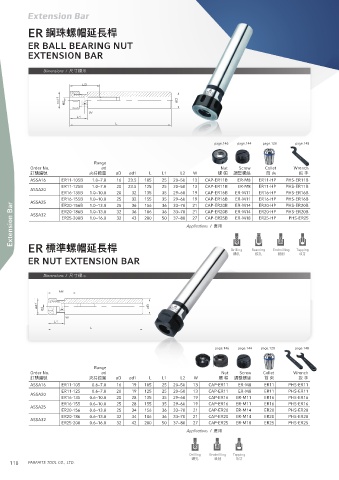

Extension Bar

ER 鋼珠螺帽延長桿

ER BALL BEARING NUT
EXTENSION BAR

Dimensions / 尺寸標示

page.146 page.144 page.120 page.148

Range
Order No. ød Nut Screw Collet Wrench
訂購編號 夾持範圍 øD ød1 L L1 L2 W 螺 帽 調整螺絲 筒 夾 扳 手
ASSA16 ER11-105B 1.0~7.0 16 23.5 105 25 20~50 13 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-125B 1.0~7.0 20 23.5 125 25 20~50 13 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ASSA20
ER16-135B 1.0~10.0 20 32 135 35 29~60 19 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-155B 1.0~10.0 25 32 155 35 29~60 19 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
Extension Bar ASSA32 ER20-186B 1.0~13.0 32 36 186 36 33~70 Applications / 應用 ER-M14 ER20-HP PHS-ER20B
ASSA25
156
36
ER20-156B
PHS-ER20B
25
36
1.0~13.0
21
ER20-HP
33~70
ER-M14
CAP-ER20B
CAP-ER20B
21
37~80
32
50
ER-M18
200
ER25-HP
43
27
CAP-ER25B
PHS-ER25
ER25-200B
1.0~16.0
ER 標準螺帽延長桿 Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
ER NUT EXTENSION BAR
Dimensions / 尺寸標示
page.146 page.144 page.120 page.148

Range
Order No. ød Nut Screw Collet Wrench
訂購編號 夾持範圍 øD ød1 L L1 L2 W 螺 帽 調整螺絲 筒 夾 扳 手
ASSA16 ER11-105 0.6~7.0 16 19 105 25 20~50 13 CAP-ER11 ER-M8 ER11 PHS-ER11
ER11-125 0.6~7.0 20 19 125 25 20~50 13 CAP-ER11 ER-M8 ER11 PHS-ER11
ASSA20
ER16-135 0.6~10.0 20 28 135 35 29~60 19 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-155 0.6~10.0 25 28 155 35 29~60 19 CAP-ER16 ER-M11 ER16 PHS-ER16
ASSA25
ER20-156 0.6~13.0 25 34 156 36 33~70 21 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-186 0.6~13.0 32 34 186 36 33~70 21 CAP-ER20 ER-M14 ER20 PHS-ER20
ASSA32
ER25-200 0.6~16.0 32 42 200 50 37~80 27 CAP-ER25 ER-M18 ER25 PHS-ER25
Applications / 應用

Drilling Endmilling Tapping
鑽孔 銑削 攻牙
110 PARFAITE TOOL CO., LTD.
