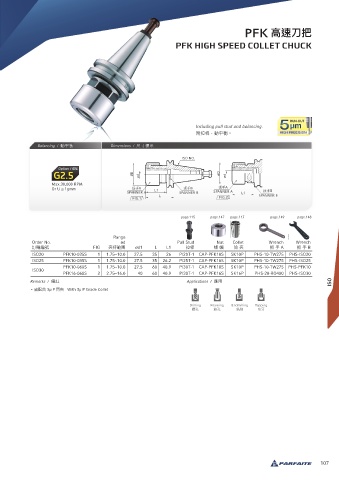

PFK 高速刀把
PFK HIGH SPEED COLLET CHUCK
Including pull stud and balancing.
附拉桿，動平衡。
Balancing / 動平衡 Dimensions / 尺寸標示
Max.30,000 RPM
Or U ≤ 1gmm
page.115 page.147 page.117 page.149 page.148
Range
Order No. ød Pull Stud Nut Collet Wrench Wrench
訂購編號 FIG 夾持範圍 ød1 L L1 拉桿 螺 帽 筒 夾 扳 手 A 扳 手 B
ISO20 PFK10-035S 1 1.75~10.0 27.5 35 26 PI20T-1 CAP-PFK10S SK10P PHS-10-TW275 PHS-ISO20
ISO25 PFK10-035S 1 1.75~10.0 27.5 35 26.2 PI25T-1 CAP-PFK10S SK10P PHS-10-TW275 PHS-ISO25
PFK10-060S 1 1.75~10.0 27.5 60 40.9 PI30T-1 CAP-PFK10S SK10P PHS-10-TW275 PHS-PFK10
ISO30
PFK16-060S 2 2.75~16.0 40 60 40.9 PI30T-1 CAP-PFK16S SK16P PHS-20-RO400 PHS-ISO30
ISO
Remarks / 備註 Applications / 應用
• 需配合 3µ P 筒夾 With 3µ P Grade Collet
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
