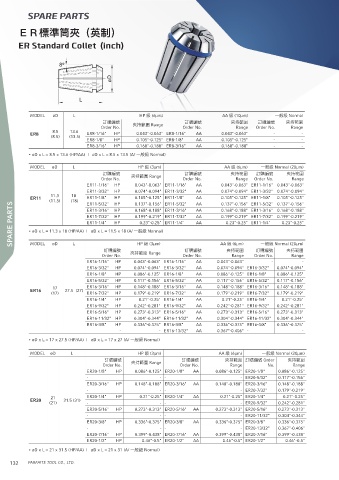

SPARE PARTS

ＥＲ標準筒夾（英制）

ER Standard Collet (inch)

MODEL øD L HP 級 (6μm) AA 級 (10μm) 一般級 Normal
訂購編號 夾持範圍 Range 訂購編號 夾持範圍 訂購編號 夾持範圍
Order No. Order No. Range Order No. Range
8.5 13.6
ER8 ER8-1/16" HP 0.043"-0.063" ER8-1/16" AA 0.043"-0.063" - -
(8.5) (13.5)
ER8-1/8" HP 0.105"-0.125" ER8-1/8" AA 0.105"-0.125" - -
ER8-3/16" HP 0.168"-0.188" ER8-3/16" AA 0.168"-0.188" - -
• øD x L = 8.5 x 13.6 (HP/AA) l øD x L = 8.5 x 13.5 (A/ 一般級 Normal)

MODEL øD L HP 級 (3μm) AA 級 (6μm) 一般級 Normal (20μm)
訂購編號 訂購編號 夾持範圍 訂購編號 夾持範圍
Order No. 夾持範圍 Range Order No. Range Order No. Range
ER11-1/16" HP 0.043"-0.063" ER11-1/16" AA 0.043"-0.063" ER11-1/16" 0.043"-0.063"
ER11-3/32" HP 0.074"-0.094" ER11-3/32" AA 0.074"-0.094" ER11-3/32" 0.074"-0.094"
11.3 18
ER11 (11.5) (18) ER11-1/8" HP 0.105"-0.125" ER11-1/8" AA 0.105"-0.125" ER11-1/8" 0.105"-0.125"
AA
ER11-5/32"
HP
0.137"-0.156" ER11-5/32"
SPARE PARTS • øD x L = 11.3 x 18 (HP/AA) l øD x L = 11.5 x 18 (A/ 一般級 Normal) AA 0.199"-0.219" ER11-7/32" 0.199"-0.219"
0.137"-0.156" ER11-5/32"
0.137"-0.156"
0.168"-0.188"
ER11-3/16"
HP
0.168"-0.188" ER11-3/16"
0.168"-0.188" ER11-3/16"
AA
0.199"-0.219" ER11-7/32"
HP
ER11-7/32"
HP
0.23"-0.25" ER11-1/4"
AA
0.23"-0.25"
ER11-1/4"
0.23"-0.25" ER11-1/4"
L
øD
MODEL
一般級 Normal (20μm)
訂購編號 HP 級 (3μm) 訂購編號 AA 級 (6μm) 訂購編號 夾持範圍
夾持範圍
Order No. 夾持範圍 Range Order No. Range Order No. Range
ER16-1/16" HP 0.043"-0.063" ER16-1/16" AA 0.043"-0.063" - -
ER16-3/32" HP 0.074"-0.094" ER16-3/32" AA 0.074"-0.094" ER16-3/32" 0.074"-0.094"
ER16-1/8" HP 0.086"-0.125" ER16-1/8" AA 0.086"-0.125" ER16-1/8" 0.086"-0.125"
ER16-5/32" HP 0.117"-0.156" ER16-5/32" AA 0.117"-0.156" ER16-5/32" 0.117"-0.156"
17 ER16-3/16" HP 0.148"-0.188" ER16-3/16" AA 0.148"-0.188" ER16-3/16" 0.148"-0.188"
ER16 27.5 (27)
(17) ER16-7/32" HP 0.179"-0.219" ER16-7/32" AA 0.179"-0.219" ER16-7/32" 0.179"-0.219"
ER16-1/4" HP 0.21"-0.25" ER16-1/4" AA 0.21"-0.25" ER16-1/4" 0.21"-0.25"
ER16-9/32" HP 0.242"-0.281" ER16-9/32" AA 0.242"-0.281" ER16-9/32" 0.242"-0.281"
ER16-5/16" HP 0.273"-0.313" ER16-5/16" AA 0.273"-0.313" ER16-5/16" 0.273"-0.313"
ER16-11/32" HP 0.304"-0.344" ER16-11/32" AA 0.304"-0.344" ER16-11/32" 0.304"-0.344"
ER16-3/8" HP 0.336"-0.375" ER16-3/8" AA 0.336"-0.375" ER16-3/8" 0.336"-0.375"
- - ER16-13/32" AA 0.367"-0.406" - -
• øD x L = 17 x 27.5 (HP/AA) l øD x L = 17 x 27 (A/ 一般級 Normal)
MODEL øD L HP 級 (3μm) AA 級 (6μm) 一般級 Normal (20μm)
訂購編號 夾持範圍 Range 訂購編號 夾持範圍 訂購編號 Order 夾持範圍
Order No. Order No. Range No. Range
ER20-1/8" HP 0.086"-0.125" ER20-1/8" AA 0.086"-0.125" ER20-1/8" 0.086"-0.125"
- - - - ER20-5/32" 0.117"-0.156"
ER20-3/16" HP 0.148"-0.188" ER20-3/16" AA 0.148"-0.188" ER20-3/16" 0.148"-0.188"
- - - - ER20-7/32" 0.179"-0.219"
21 ER20-1/4" HP 0.21"-0.25" ER20-1/4" AA 0.21"-0.25" ER20-1/4" 0.21"-0.25"
ER20 31.5 (31)
(21) - - - - ER20-9/32" 0.242"-0.281"
ER20-5/16" HP 0.273"-0.313" ER20-5/16" AA 0.273"-0.313" ER20-5/16" 0.273"-0.313"
- - - - ER20-11/32" 0.304"-0.344"
ER20-3/8" HP 0.336"-0.375" ER20-3/8" AA 0.336"-0.375" ER20-3/8" 0.336"-0.375"
- - - - ER20-13/32" 0.367"-0.406"
ER20-7/16" HP 0.399"-0.438" ER20-7/16" AA 0.399"-0.438" ER20-7/16" 0.399"-0.438"
ER20-1/2" HP 0.46"-0.5" ER20-1/2" AA 0.46"-0.5" ER20-1/2" 0.46"-0.5"
• øD x L = 21 x 31.5 (HP/AA) l øD x L = 21 x 31 (A/ 一般級 Normal)
