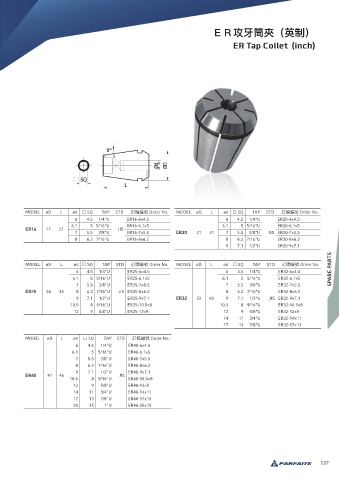

ＥＲ攻牙筒夾（英制）

ER Tap Collet (inch)

MODEL øD L ød □ SQ TAP STD 訂購編號 Order No. MODEL øD L ød □ SQ TAP STD 訂購編號 Order No.
6 4.5 1/4"U ER16-6x4.5 6 4.5 1/4"U ER20-6x4.5
6.1 5 5/16"U ER16-6.1x5 6.1 5 5/16"U ER20-6.1x5
ER16 17 27 JIS
7 5.5 3/8"U ER16-7x5.5 ER20 21 31 7 5.5 3/8"U JIS ER20-7x5.5
8 6.2 7/16"U ER16-8x6.2 8 6.2 7/16"U ER20-8x6.2
9 7.1 1/2"U ER20-9x7.1

MODEL øD L ød □ SQ TAP STD 訂購編號 Order No. MODEL øD L ød □ SQ TAP STD 訂購編號 Order No.
6 4.5 1/4"U ER25-6x4.5 6 4.5 1/4"U ER32-6x4.5 SPARE PARTS
6.1 5 5/16"U ER25-6.1x5 6.1 5 5/16"U ER32-6.1x5
7 5.5 3/8"U ER25-7x5.5 7 5.5 3/8"U ER32-7x5.5
ER25 26 35 8 6.2 7/16"U JIS ER25-8x6.2 8 6.2 7/16"U ER32-8x6.2
9 7.1 1/2"U ER25-9x7.1 ER32 33 40 9 7.1 1/2"U JIS ER32-9x7.1
10.5 8 9/16"U ER25-10.5x8 10.5 8 9/16"U ER32-10.5x8
12 9 5/8"U ER25-12x9 12 9 5/8"U ER32-12x9
14 11 3/4"U ER32-14x11
17 13 7/8"U ER32-17x13

MODEL øD L ød □ SQ TAP STD 訂購編號 Order No.
6 4.5 1/4"U ER40-6x4.5
6.1 5 5/16"U ER40-6.1x5
7 5.5 3/8"U ER40-7x5.5
8 6.2 7/16"U ER40-8x6.2
9 7.1 1/2"U ER40-9x7.1
ER40 41 46 JIS
10.5 8 9/16"U ER40-10.5x8
12 9 5/8"U ER40-12x9
14 11 3/4"U ER40-14x11
17 13 7/8"U ER40-17x13
20 15 1"U ER40-20x15

137
