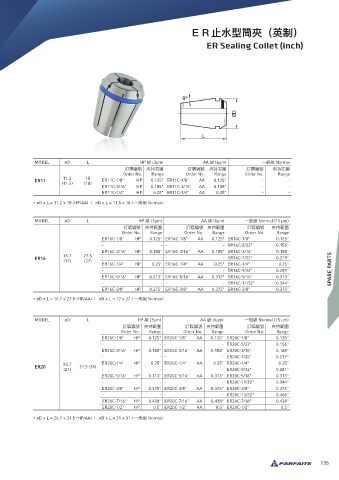

ＥＲ止水型筒夾（英制）

ER Sealing Collet (inch)

MODEL øD L HP 級 (3μm) AA 級 (6μm) 一般級 Normal
訂購編號 夾持範圍 訂購編號 夾持範圍 訂購編號 夾持範圍
Order No. Range Order No. Range Order No. Range
11.2 18
ER11 ER11C-1/8" HP 0.125" ER11C-1/8" AA 0.125" - -
(11.5) (18)
ER11C-3/16" HP 0.188" ER11C-3/16" AA 0.188" - -
ER11C-1/4" HP 0.25" ER11C-1/4" AA 0.25" - -
• øD x L = 11.2 x 18 (HP/AA) l øD x L = 11.5 x 18 ( 一般級 Normal)

MODEL øD L HP 級 (3μm) AA 級 (6μm) 一般級 Normal (15 μm)
訂購編號 夾持範圍 訂購編號 夾持範圍 訂購編號 夾持範圍
Order No. Range Order No. Range Order No. Range
ER16C-1/8" HP 0.125" ER16C-1/8" AA 0.125" ER16C-1/8" 0.125"
- - - - ER16C-5/32" 0.156"
ER16C-3/16" HP 0.188" ER16C-3/16" AA 0.188" ER16C-3/16" 0.188"
16.7 27.5
ER16 - - - - ER16C-7/32" 0.219"
(17) (27)
ER16C-1/4" HP 0.25" ER16C-1/4" AA 0.25" ER16C-1/4" 0.25"
- - - - ER16C-9/32" 0.281" SPARE PARTS
ER16C-5/16" HP 0.313" ER16C-5/16" AA 0.313" ER16C-5/16" 0.313"
- - - - ER16C-11/32" 0.344"
ER16C-3/8" HP 0.375" ER16C-3/8" AA 0.375" ER16C-3/8" 0.375"
• øD x L = 16.7 x 27.5 (HP/AA) l øD x L = 17 x 27 ( 一般級 Normal)

MODEL øD L HP 級 (3μm) AA 級 (6μm) 一般級 Normal (15 μm)
訂購編號 夾持範圍 訂購編號 夾持範圍 訂購編號 夾持範圍
Order No. Range Order No. Range Order No. Range
ER20C-1/8" HP 0.125" ER20C-1/8" AA 0.125" ER20C-1/8" 0.125"
- - - - ER20C-5/32" 0.156"
ER20C-3/16" HP 0.188" ER20C-3/16" AA 0.188" ER20C-3/16" 0.188"
- - - - ER20C-7/32" 0.219"
20.7 ER20C-1/4" HP 0.25" ER20C-1/4" AA 0.25" ER20C-1/4" 0.25"
ER20 31.5 (31)
(21) - - - - ER20C-9/32" 0.281"
ER20C-5/16" HP 0.313" ER20C-5/16" AA 0.313" ER20C-5/16" 0.313"
- - - - ER20C-11/32" 0.344"
ER20C-3/8" HP 0.375" ER20C-3/8" AA 0.375" ER20C-3/8" 0.375"
- - - - ER20C-13/32" 0.406"
ER20C-7/16" HP 0.438" ER20C-7/16" AA 0.438" ER20C-7/16" 0.438"
ER20C-1/2" HP 0.5" ER20C-1/2" AA 0.5" ER20C-1/2" 0.5"
• øD x L = 20.7 x 31.5 (HP/AA) l øD x L = 21 x 31 ( 一般級 Normal)
