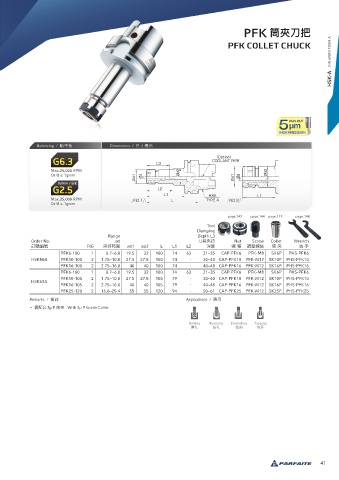

PFK 筒夾刀把
HSK-A DIN 69893 FORM A
PFK COLLET CHUCK
Balancing / 動平衡 Dimensions / 尺寸標示
Max.25,000 RPM
Or U ≤ 1gmm
Max.25,000 RPM
Or U ≤ 1gmm
page.147 page.144 page.117 page.148
Tool
Clamping
Range Depth L3
Order No. ød 刀具夾持 Nut Screw Collet Wrench
訂購編號 FIG 夾持範圍 ød1 ød2 L L1 L2 深度 螺 帽 調整螺絲 筒 夾 扳 手
PFK6-100 1 0.7~6.0 19.5 32 100 74 63 21~35 CAP-PFK6 PFK-M8 SK6P PHS-PFK6
HSK50A PFK10-100 2 1.75~10.0 27.5 27.5 100 74 - 30~40 CAP-PFK10 PFK-M12 SK10P PHS-PFK10
PFK16-100 2 2.75~16.0 40 40 100 74 - 40~48 CAP-PFK16 PFK-M12 SK16P PHS-PFK16
PFK6-100 1 0.7~6.0 19.5 32 100 74 63 21~35 CAP-PFK6 PFK-M8 SK6P PHS-PFK6
PFK10-105 2 1.75~10.0 27.5 27.5 105 79 - 30~40 CAP-PFK10 PFK-M12 SK10P PHS-PFK10
HSK63A
PFK16-105 2 2.75~16.0 40 40 105 79 - 40~48 CAP-PFK16 PFK-M12 SK16P PHS-PFK16
PFK25-120 2 16.0~25.4 55 55 120 94 - 50~61 CAP-PFK25 PFK-M12 SK25P PHS-PFK25
Remarks / 備註 Applications / 應用
• 需配合 3µ P 筒夾 With 3µ P Grade Collet
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
