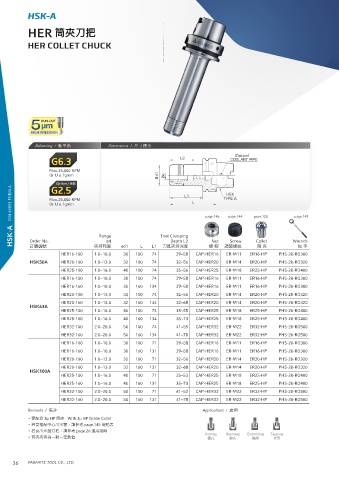

HSK-A

HER 筒夾刀把

HER COLLET CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

Max.25,000 RPM
Or U ≤ 1gmm
HSK-A DIN 69893 FORM A Max.25,000 RPM page.146 page.144 page.120 page.149

Or U ≤ 1gmm

Range
Collet
Nut
ød
Wrench
Order No.
Depth L2
Screw
螺 帽
刀具夾持深度
L
筒 夾
訂購編號
扳 手
29~58
74
30
1.0~10.0
ER-M11
HER16-100 夾持範圍 ød1 100 L1 Tool Clamping CAP-HER16 調整螺絲 ER16-HP PHS-20-RO300
HSK50A HER20-100 1.0~13.0 32 100 74 32~56 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER25-100 1.0~16.0 40 100 74 35~56 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER16-100 1.0~10.0 30 100 74 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-160 1.0~10.0 30 160 134 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER20-100 1.0~13.0 32 100 74 32~56 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-160 1.0~13.0 32 160 134 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HSK63A
HER25-100 1.0~16.0 40 100 74 35~55 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-160 1.0~16.0 40 160 134 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER32-100 2.0~20.0 50 100 74 41~55 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-160 2.0~20.0 50 160 134 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER16-100 1.0~10.0 30 100 71 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER16-160 1.0~10.0 30 160 131 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
HER20-100 1.0~13.0 32 100 71 32~50 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER20-160 1.0~13.0 32 160 131 32~68 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HSK100A
HER25-100 1.0~16.0 40 100 71 35~53 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER25-160 1.0~16.0 40 160 131 35~73 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
HER32-100 2.0~20.0 50 100 71 41~52 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
HER32-160 2.0~20.0 50 160 131 41~78 CAP-HER32 ER-M22 ER32-HP PHS-20-RO500
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需搭配中心出水管，請參考 page.145 規格表
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling Tapping
• 筒夾夾持為一對一整數值 鑽孔 鉸孔 銑削 攻牙
