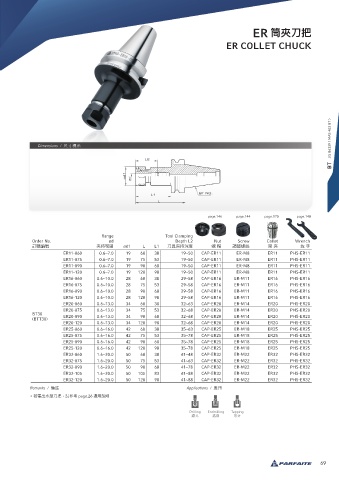

ER 筒夾刀把

ER COLLET CHUCK

BT JIS B6339 ( MAS 403 BT )

Dimensions / 尺寸標示

page.146 page.144 page.120 page.148

Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
ER11-060 0.6~7.0 19 60 38 19~50 CAP-ER11 ER-M8 ER11 PHS-ER11
ER11-075 0.6~7.0 19 75 53 19~50 CAP-ER11 ER-M8 ER11 PHS-ER11
ER11-090 0.6~7.0 19 90 68 19~50 CAP-ER11 ER-M8 ER11 PHS-ER11
ER11-120 0.6~7.0 19 120 98 19~50 CAP-ER11 ER-M8 ER11 PHS-ER11
ER16-060 0.6~10.0 28 60 38 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-075 0.6~10.0 28 75 53 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-090 0.6~10.0 28 90 68 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER16-120 0.6~10.0 28 120 98 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
ER20-060 0.6~13.0 34 60 38 32~63 CAP-ER20 ER-M14 ER20 PHS-ER20
ER20-075 0.6~13.0 34 75 53 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
BT30 ER20-090 0.6~13.0 34 90 68 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
(BTT30)
ER20-120 0.6~13.0 34 120 98 32~68 CAP-ER20 ER-M14 ER20 PHS-ER20
ER25-060 0.6~16.0 42 60 38 35~63 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-075 0.6~16.0 42 75 53 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-090 0.6~16.0 42 90 68 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER25-120 0.6~16.0 42 120 98 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
ER32-060 1.6~20.0 50 60 38 41~48 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-075 1.6~20.0 50 75 53 41~63 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-090 1.6~20.0 50 90 68 41~78 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-105 1.6~20.0 50 105 83 41~88 CAP-ER32 ER-M22 ER32 PHS-ER32
ER32-120 1.6~20.0 50 120 98 41~88 CAP-ER32 ER-M22 ER32 PHS-ER32
Remarks / 備註 Applications / 應用
• 若需出水型刀把，請參考 page.26 選用說明

Drilling Endmilling Tapping
鑽孔 銑削 攻牙
