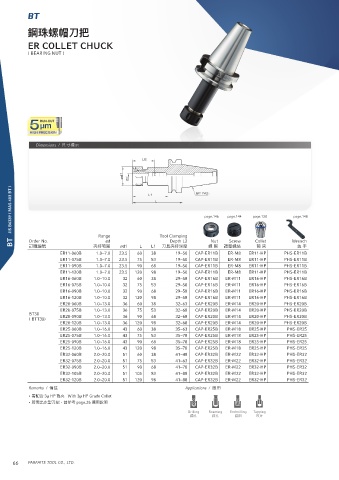

BT

鋼珠螺帽刀把

ER COLLET CHUCK
( BEARING NUT )

Dimensions / 尺寸標示

BT JIS B6339 ( MAS 403 BT ) page.146 page.144 page.120 page.148

Range
Collet
Depth L2
Nut
Screw
Order No.
Wrench
ød
扳 手
刀具夾持深度
ød1
螺 帽
訂購編號
筒 夾
19~50
ER-M8
ER11-060B 夾持範圍 23.5 60 L L1 Tool Clamping CAP-ER11B 調整螺絲 ER11-HP PHS-ER11B
38
1.0~7.0
ER11-075B 1.0~7.0 23.5 75 53 19~50 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-090B 1.0~7.0 23.5 90 68 19~50 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-120B 1.0~7.0 23.5 120 98 19~50 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER16-060B 1.0~10.0 32 60 38 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-075B 1.0~10.0 32 75 53 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-090B 1.0~10.0 32 90 68 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-120B 1.0~10.0 32 120 98 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-060B 1.0~13.0 36 60 38 32~63 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-075B 1.0~13.0 36 75 53 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
BT30 ER20-090B 1.0~13.0 36 90 68 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
( BTT30)
ER20-120B 1.0~13.0 36 120 98 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER25-060B 1.0~16.0 43 60 38 35~63 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-075B 1.0~16.0 43 75 53 35~78 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-090B 1.0~16.0 43 90 68 35~78 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-120B 1.0~16.0 43 120 98 35~78 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER32-060B 2.0~20.0 51 60 38 41~48 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-075B 2.0~20.0 51 75 53 41~63 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-090B 2.0~20.0 51 90 68 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-105B 2.0~20.0 51 105 83 41~88 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-120B 2.0~20.0 51 120 98 41~88 CAP-ER32B ER-M22 ER32-HP PHS-ER32
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
