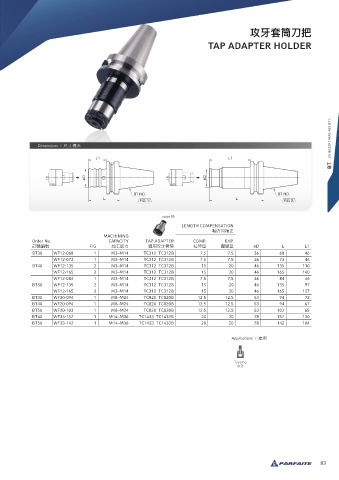

攻牙套筒刀把

TAP ADAPTER HOLDER

BT JIS B6339 ( MAS 403 BT )

Dimensions / 尺寸標示

page.85
LENGTH COMPENSATION
軸方向補正
MACHINING
Order No. CAPACITY TAP ADAPTER COMP. EXP.
訂購編號 FIG 加工能力 適用攻牙套筒 拉伸量 壓縮量 øD L L1
BT30 WF12-068 1 M3~M14 TC312 TC312B 7.5 7.5 36 68 46
WF12-073 1 M3~M14 TC312 TC312B 7.5 7.5 36 73 46
BT40 WF12-135 2 M3~M14 TC312 TC312B 15 20 46 135 110
WF12-165 2 M3~M14 TC312 TC312B 15 20 46 165 140
WF12-084 1 M3~M14 TC312 TC312B 7.5 7.5 36 84 46
BT50 WF12-135 2 M3~M14 TC312 TC312B 15 20 46 135 97
WF12-165 2 M3~M14 TC312 TC312B 15 20 46 165 127
BT30 WF20-094 1 M8~M24 TC820 TC820B 12.5 12.5 53 94 72
BT40 WF20-094 1 M8~M24 TC820 TC820B 12.5 12.5 53 94 67
BT50 WF20-103 1 M8~M24 TC820 TC820B 12.5 12.5 53 103 65
BT40 WF33-157 1 M14~M36 TC1433 TC1433B 20 20 78 157 130
BT50 WF33-142 1 M14~M36 TC1433 TC1433B 20 20 78 142 104

Applications / 應用

Tapping
攻牙
