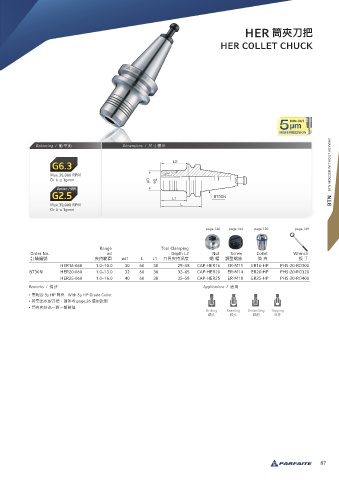

P. 89
HER 筒夾刀把
HER COLLET CHUCK
BTN BTN HOLDER WITHOUT KEYWAY
Balancing / 動平衡 Dimensions / 尺寸標示
Max.30,000 RPM
Or U ≤ 1gmm
Max.30,000 RPM
Or U ≤ 1gmm
page.146 page.144 page.120 page.149
Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
HER16-060 1.0~10.0 30 60 38 29~58 CAP-HER16 ER-M11 ER16-HP PHS-20-RO300
BT30N HER20-060 1.0~13.0 32 60 38 32~65 CAP-HER20 ER-M14 ER20-HP PHS-20-RO320
HER25-060 1.0~16.0 40 60 38 35~58 CAP-HER25 ER-M18 ER25-HP PHS-20-RO400
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為一對一整數值
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
87
