BTN

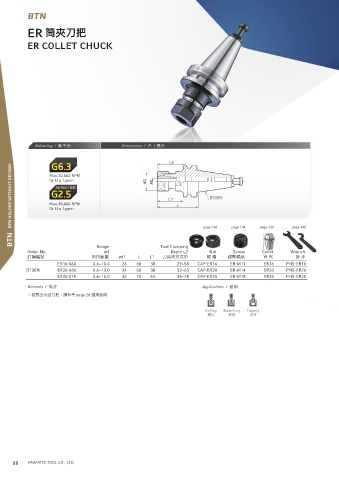

ER 筒夾刀把
ER COLLET CHUCK
Balancing / 動平衡 Dimensions / 尺寸標示
BTN BTN HOLDER WITHOUT KEYWAY Max.30,000 RPM page.146 page.144 page.120 page.148
Or U ≤ 1gmm
Max.30,000 RPM
Or U ≤ 1gmm
ød
Depth L2
Order No. Range Tool Clamping Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
ER16-060 0.6~10.0 28 60 38 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
BT30N ER20-060 0.6~13.0 34 60 38 32~63 CAP-ER20 ER-M14 ER20 PHS-ER20
ER25-075 0.6~16.0 42 75 53 35~78 CAP-ER25 ER-M18 ER25 PHS-ER25
Remarks / 備註 Applications / 應用
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Endmilling Tapping
鑽孔 銑削 攻牙
