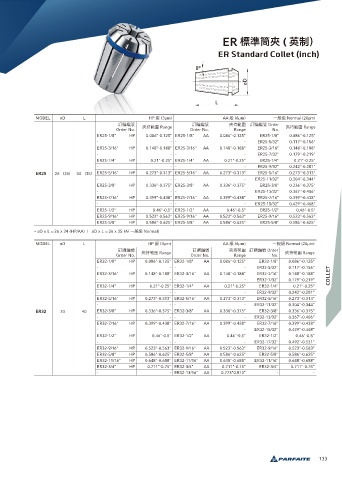

Page 135 - 2021刀把目錄

ER 秂伛ᒻ䄸 ( 舣ګ҂

ER Standard Collet (inch)

MODEL øD L HP 羷 (3Ŀm) AA 羷 (6Ŀm) Ӟ膢羷 Normal (20Ŀm)
懪搳翥蒈 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 Order
Order No. 䄸瞱塅瑻 Range Order No. Range No. 䄸瞱塅瑻 Range
ER25-1/8" HP 0.086"-0.125" ER25-1/8" AA 0.086"-0.125" ER25-1/8" 0.086"-0.125"
- - - - ER25-5/32" 0.117"-0.156"
ER25-3/16" HP 0.148"-0.188" ER25-3/16" AA 0.148"-0.188" ER25-3/16" 0.148"-0.188"
- - - - ER25-7/32" 0.179"-0.219"
ER25-1/4" HP 0.21"-0.25" ER25-1/4" AA 0.21"-0.25" ER25-1/4" 0.21"-0.25"
- - - - ER25-9/32" 0.242"-0.281"
ER25 26 (26) 34 (35) ER25-5/16" HP 0.273"-0.313" ER25-5/16" AA 0.273"-0.313" ER25-5/16" 0.273"-0.313"
- - - - ER25-11/32" 0.304"-0.344"
ER25-3/8" HP 0.336"-0.375" ER25-3/8" AA 0.336"-0.375" ER25-3/8" 0.336"-0.375"
- - - - ER25-13/32" 0.367"-0.406"
ER25-7/16" HP 0.399"-0.438" ER25-7/16" AA 0.399"-0.438" ER25-7/16" 0.399"-0.438"
- - - - ER25-15/32" 0.429"-0.468"
ER25-1/2" HP 0.46"-0.5" ER25-1/2" AA 0.46"-0.5" ER25-1/2" 0.46"-0.5"
ER25-9/16" HP 0.523"-0.563" ER25-9/16" AA 0.523"-0.563" ER25-9/16" 0.523"-0.563"
ER25-5/8" HP 0.586"-0.625" ER25-5/8" AA 0.586"-0.625" ER25-5/8" 0.586"-0.625"
• øD x L = 26 x 34 (HP/AA) l øD x L = 26 x 35 (A/ Ӟ膢羷 Normal)

MODEL øD L HP 羷 (3Ŀm) AA 羷 (6Ŀm) Ӟ膢羷 Normal (20Ŀm)
懪搳翥蒈 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 Order
Order No. 䄸瞱塅瑻 Range Order No. Range No. 䄸瞱塅瑻 Range
ER32-1/8" HP 0.086"-0.125" ER32-1/8" AA 0.086"-0.125" ER32-1/8" 0.086"-0.125"
- - - - ER32-5/32" 0.117"-0.156"
ER32-3/16" HP 0.148"-0.188" ER32-3/16" AA 0.148"-0.188" ER32-3/16" 0.148"-0.188" COLLET
- - - - ER32-7/32" 0.179"-0.219"
ER32-1/4" HP 0.21"-0.25" ER32-1/4" AA 0.21"-0.25" ER32-1/4" 0.21"-0.25"
- - - - ER32-9/32" 0.242"-0.281"
ER32-5/16" HP 0.273"-0.313" ER32-5/16" AA 0.273"-0.313" ER32-5/16" 0.273"-0.313"
- - - - ER32-11/32" 0.304"-0.344"
ER32 33 40 ER32-3/8" HP 0.336"-0.375" ER32-3/8" AA 0.336"-0.375" ER32-3/8" 0.336"-0.375"
- - - - ER32-13/32" 0.367"-0.406"
ER32-7/16" HP 0.399"-0.438" ER32-7/16" AA 0.399"-0.438" ER32-7/16" 0.399"-0.438"
- - - - ER32-15/32" 0.429"-0.468"
ER32-1/2" HP 0.46"-0.5" ER32-1/2" AA 0.46"-0.5" ER32-1/2" 0.46"-0.5"
- - - - ER32-17/32" 0.492"-0.531"
ER32-9/16" HP 0.523"-0.563" ER32-9/16" AA 0.523"-0.563" ER32-9/16" 0.523"-0.563"
ER32-5/8" HP 0.586"-0.625" ER32-5/8" AA 0.586"-0.625" ER32-5/8" 0.586"-0.625"
ER32-11/16" HP 0.648"-0.688" ER32-11/16" AA 0.648"-0.688" ER32-11/16" 0.648"-0.688"
ER32-3/4" HP 0.711"-0.75" ER32-3/4" AA 0.711"-0.75" ER32-3/4" 0.711"-0.75"
- - ER32-13/16" AA 0.773"0.813" - -

133
