COLLET

ER ྊ࿜ࣳᒻ䄸ҁ舣ګ҂

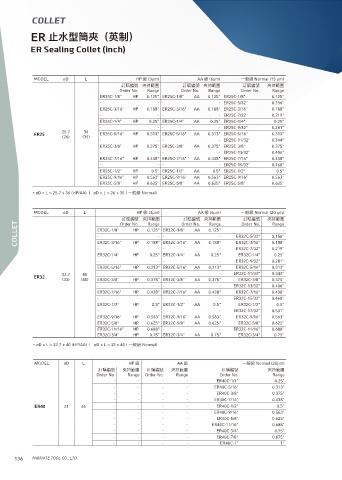

ER Sealing Collet (inch)

MODEL øD L HP 羷 (3Ŀm) AA 羷 (6Ŀm) Ӟ膢羷 Normal (15 Ŀm)
懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻
Order No. Range Order No. Range Order No. Range
ER25C-1/8" HP 0.125" ER25C-1/8" AA 0.125" ER25C-1/8" 0.125"
- - - - ER25C-5/32" 0.156"
ER25C-3/16" HP 0.188" ER25C-3/16" AA 0.188" ER25C-3/16" 0.188"
- - - - ER25C-7/32" 0.219"
ER25C-1/4" HP 0.25" ER25C-1/4" AA 0.25" ER25C-1/4" 0.25"
- - - - ER25C-9/32" 0.281"
25.7 34
ER25 ER25C-5/16" HP 0.313" ER25C-5/16" AA 0.313" ER25C-5/16" 0.313"
(26) (35)
- - - - ER25C-11/32" 0.344"
ER25C-3/8" HP 0.375" ER25C-3/8" AA 0.375" ER25C-3/8" 0.375"
- - - - ER25C-13/32" 0.406"
ER25C-7/16" HP 0.438" ER25C-7/16" AA 0.438" ER25C-7/16" 0.438"
- - - - ER25C-15/32" 0.468"
ER25C-1/2" HP 0.5" ER25C-1/2" AA 0.5" ER25C-1/2" 0.5"
ER25C-9/16" HP 0.563" ER25C-9/16" AA 0.563" ER25C-9/16" 0.563"
ER25C-5/8" HP 0.625" ER25C-5/8" AA 0.625" ER25C-5/8" 0.625"
• øD x L = 25.7 x 34 (HP/AA) l øD x L = 26 x 35 ( Ӟ膢羷 Normal)

MODEL øD L HP 羷 (3Ŀm) AA 羷 (6Ŀm) Ӟ膢羷 Normal (20 Ŀm)
懪搳翥蒈 䄸瞱塅瑻 Order No. Range Order No. 䄸瞱塅瑻
懪搳翥蒈 䄸瞱塅瑻
懪搳翥蒈
COLLET ER32C-1/8" HP 0.125" ER32C-1/8" AA 0.125" - ER32C-5/32" - 0.156" -
Range
Order No.
Range
- -
-
- ER32C-3/16" HP 0.188" ER32C-3/16" AA 0.188" - ER32C-3/16" 0.188"
ER32C-7/32"
- -
0.219"
ER32C-1/4" HP 0.25" ER32C-1/4" AA 0.25" ER32C-1/4" 0.25"
- - - - ER32C-9/32" 0.281"
ER32C-5/16" HP 0.313" ER32C-5/16" AA 0.313" ER32C-5/16" 0.313"
32.7 40 - - - - ER32C-11/32" 0.344"
ER32
(33) (40) ER32C-3/8" HP 0.375" ER32C-3/8" AA 0.375" ER32C-3/8" 0.375"
- - - - ER32C-13/32" 0.406"
ER32C-7/16" HP 0.438" ER32C-7/16" AA 0.438" ER32C-7/16" 0.438"
- - - - ER32C-15/32" 0.468"
ER32C-1/2" HP 0.5" ER32C-1/2" AA 0.5" ER32C-1/2" 0.5"
- - - - ER32C-17/32" 0.531"
ER32C-9/16" HP 0.563" ER32C-9/16" AA 0.563" ER32C-9/16" 0.563"
ER32C-5/8" HP 0.625" ER32C-5/8" AA 0.625" ER32C-5/8" 0.625"
ER32C-11/16" HP 0.688" - - ER32C-11/16" 0.688"
ER32C-3/4" HP 0.75" ER32C-3/4" AA 0.75" ER32C-3/4" 0.75"
• øD x L = 32.7 x 40 (HP/AA) l øD x L = 33 x 40 ( Ӟ膢羷 Normal)

MODEL øD L HP 羷 AA 羷 Ӟ膢羷 Normal (20Ŀm)
懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻 懪搳翥蒈 䄸瞱塅瑻
Order No. Range Order No. Range Order No. Range
- - - - ER40C-1/4" 0.25"
- - - - ER40C-5/16" 0.313"
- - - - ER40C-3/8" 0.375"
- - - - ER40C-7/16" 0.438"
ER40 41 46 - - - - ER40C-1/2" 0.5"
- - - - ER40C-9/16" 0.563"
- - - - ER40C-5/8" 0.625"
- - - - ER40C-11/16" 0.688"
- - - - ER40C-3/4" 0.75"
- - - - ER40C-7/8" 0.875"
- - - - ER40C-1" 1"

136 PARFAITE TOOL CO., LTD.
