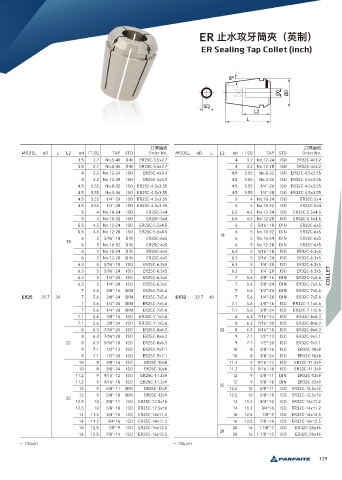

ER ྊ硭粤ᒻ䄸ҁ舣ګ҂
ER Sealing Tap Collet (inch)
懪搳翥蒈 懪搳翥蒈
MODEL øD L L2 ød ̕ SQ TAP STD Order No. MODEL øD L L2 ød ̕ SQ TAP STD Order No.
3.5 2.7 No.5-40 DIN ER25C-3.5x2.7 4 3.2 No.12-24 ISO ER32C-4x3.2
3.5 2.7 No.5-44 DIN ER25C-3.5x2.7 4 3.2 No.12-28 ISO ER32C-4x3.2
4 3.2 No.12-24 ISO ER25C-4x3.2 4.5 3.55 No.8-32 ISO ER32C-4.5x3.55
4 3.2 No.12-28 ISO ER25C-4x3.2 4.5 3.55 No.3-36 ISO ER32C-4.5x3.55
4.5 3.55 No.8-32 ISO ER25C-4.5x3.55 4.5 3.55 1/4"-20 ISO ER32C-4.5x3.55
4.5 3.55 No.3-36 ISO ER25C-4.5x3.55 4.5 3.55 1/4"-28 ISO ER32C-4.5x3.55
4.5 3.55 1/4"-20 ISO ER25C-4.5x3.55 5 4 No.10-24 ISO ER32C-5x4
4.5 3.55 1/4"-28 ISO ER25C-4.5x3.55 5 4 No.10-32 ISO ER32C-5x4
5 4 No.10-24 ISO ER25C-5x4 5.5 4.5 No.12-24 ISO ER32C-5.5x4.5
5 4 No.10-32 ISO ER25C-5x4 5.5 4.5 No.12-28 ISO ER32C-5.5x4.5
5.5 4.5 No.12-24 ISO ER25C-5.5x4.5 6 5 5/16"-18 DIN ER32C-6x5
5.5 4.5 No.12-28 ISO ER25C-5.5x4.5 6 5 No.10-32 DIN ER32C-6x5
18
6 5 5/16"-18 DIN ER25C-6x5 6 5 No.10-24 DIN ER32C-6x5
18
6 5 No.10-32 DIN ER25C-6x5 6 5 No.12-28 DIN ER32C-6x5
6 5 No.10-24 DIN ER25C-6x5 6.3 5 5/16"-18 ISO ER32C-6.3x5
6 5 No.12-28 DIN ER25C-6x5 6.3 5 5/16"-24 ISO ER32C-6.3x5
6.3 5 5/16"-18 ISO ER25C-6.3x5 6.3 5 1/4"-20 ISO ER32C-6.3x5
6.3 5 5/16"-24 ISO ER25C-6.3x5 6.3 5 1/4"-28 ISO ER32C-6.3x5
6.3 5 1/4"-20 ISO ER25C-6.3x5 7 5.6 3/8"-16 DIN ER32C-7x5.6 COLLET
6.3 5 1/4"-28 ISO ER25C-6.3x5 7 5.6 3/8"-24 DIN ER32C-7x5.6
7 5.6 3/8"-16 DIN ER25C-7x5.6 7 5.6 1/4"-20 DIN ER32C-7x5.6
ER25 25.7 34 7 5.6 3/8"-24 DIN ER25C-7x5.6 ER32 32.7 40 7 5.6 1/4"-28 DIN ER32C-7x5.6
7 5.6 1/4"-20 DIN ER25C-7x5.6 7.1 5.6 3/8"-16 ISO ER32C-7.1x5.6
7 5.6 1/4"-28 DIN ER25C-7x5.6 7.1 5.6 3/8"-24 ISO ER32C-7.1x5.6
7.1 5.6 3/8"-16 ISO ER25C-7.1x5.6 8 6.3 7/16"-24 ISO ER32C-8x6.3
7.1 5.6 3/8"-24 ISO ER25C-7.1x5.6 8 6.3 7/16"-20 ISO ER32C-8x6.3
8 6.3 7/16"-24 ISO ER25C-8x6.3 22 8 6.3 5/16"-18 ISO ER32C-8x6.3
8 6.3 7/16"-20 ISO ER25C-8x6.3 9 7.1 1/2"-13 ISO ER32C-9x7.1
22 8 6.3 5/16"-18 ISO ER25C-8x6.3 9 7.1 1/2"-20 ISO ER32C-9x7.1
9 7.1 1/2"-13 ISO ER25C-9x7.1 10 8 3/8"-16 ISO ER32C-10x8
9 7.1 1/2"-20 ISO ER25C-9x7.1 10 8 3/8"-24 ISO ER32C-10x8
10 8 3/8"-16 ISO ER25C-10x8 11.2 9 9/16"-12 ISO ER32C-11.2x9
10 8 3/8"-24 ISO ER25C-10x8 11.2 9 9/16"-18 ISO ER32C-11.2x9
11.2 9 9/16"-12 ISO ER25C-11.2x9 12 9 5/8"-11 DIN ER32C-12x9
11.2 9 9/16"-18 ISO ER25C-11.2x9 12 9 5/8"-18 DIN ER32C-12x9
25
12 9 5/8"-11 DIN ER25C-12x9 12.5 10 5/8"-11 ISO ER32C-12.5x10
12 9 5/8"-18 DIN ER25C-12x9 12.5 10 5/8"-18 ISO ER32C-12.5x10
25
12.5 10 5/8"-11 ISO ER25C-12.5x10 14 11.2 3/4"-10 ISO ER32C-14x11.2
12.5 10 5/8"-18 ISO ER25C-12.5x10 14 11.2 3/4"16 ISO ER32C-14x11.2
14 11.2 3/4"-10 ISO ER25C-14x11.2 16 12.5 7/8"-9 ISO ER32C-16x12.5
14 11.2 3/4"16 ISO ER25C-14x11.2 16 12.5 7/8"-14 ISO ER32C-16x12.5
16 12.5 7/8"-9 ISO ER25C-16x12.5 20 16 1.1/8"-7 ISO ER32C-20x16
16 12.5 7/8"-14 ISO ER25C-16x12.5 28 20 16 1.1/8"-12 ISO ER32C-20x16
• (10Ŀm) • (10Ŀm) • (10Ŀm)
