P. 81

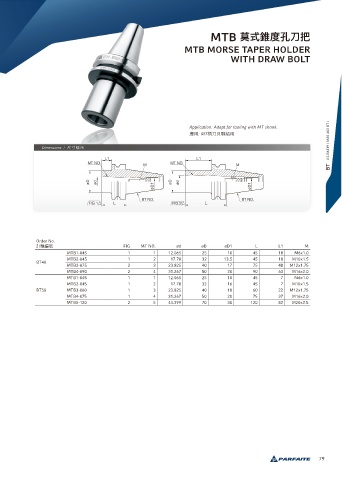

MTB 芛ୗ桫ଶڏ
MTB MORSE TAPER HOLDER
WITH DRAW BOLT
BT JIS B6339 ( MAS 403 BT )
Application: Adapt for tooling with MT shank.
䛑አ: MTຢڏٍ肥奾አ
Dimensions / 疳ੑ秂纈
Order No.
懪搳翥蒈 FIG MT NO. ød øD øD1 L L1 M
MTB1-045 1 1 12.065 25 10 45 18 M6x1.0
MTB2-045 1 2 17.78 32 13.5 45 18 M10x1.5
BT40
MTB3-075 2 3 23.825 40 17 75 48 M12x1.75
MTB4-090 2 4 31.267 50 20 90 63 M16x2.0
MTB1-045 1 1 12.065 25 10 45 7 M6x1.0
MTB2-045 1 2 17.78 32 16 45 7 M10x1.5
BT50 MTB3-060 1 3 23.825 40 18 60 22 M12x1.75
MTB4-075 1 4 31.267 50 20 75 37 M16x2.0
MTB5-120 2 5 44.399 70 30 120 82 M20x2.5
79
