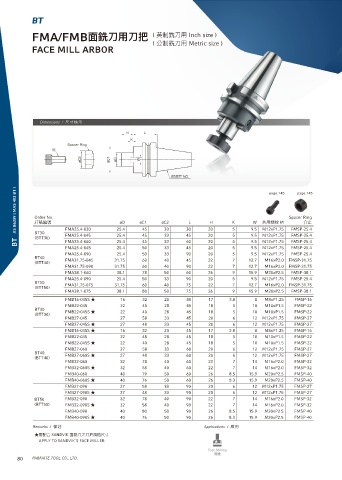

Page 82 - 2021刀把目錄

BT

FMA/FMBᶎ柮ڏአڏ಩ ( 舣ګ柮ڏአ Inch size )
( 獍ګ柮ڏአ Metric size )
FACE MILL ARBOR

Dimensions / 疳ੑ秂纈

BT JIS B6339 ( MAS 403 BT ) Order No. FMA25.4-030 25.4 øC1 øC2 30 L 20 K 9.5 وአᣪ礡 M Spacer Ring
page.145
page.145

øD
W
Օྊ
懪搳翥蒈
H
M12xP1.75
5
45
33
FMSP-25.4
BT30
FMA25.4-045
(BTT30)
9.5
45
60
25.4
33
M12xP1.75
20
FMSP-25.4
5
FMA25.4-060
25.4
20
5
9.5
FMSP-25.4
M12xP1.75
33
FMA25.4-045 25.4 45 33 45 20 5 9.5 M12xP1.75 FMSP-25.4
45
50
FMA25.4-090 25.4 50 33 90 20 5 9.5 M12xP1.75 FMSP-25.4
BT40
(BTT40) FMA31.75-045 31.75 60 40 45 22 7 12.7 M16xP2.0 FMSP-31.75
FMA31.75-090 31.75 60 40 90 22 7 12.7 M16xP2.0 FMSP-31.75
FMA38.1-060 38.1 78 50 60 26 9 15.9 M20xP2.5 FMSP-38.1
FMA25.4-090 25.4 50 33 90 20 5 9.5 M12xP1.75 FMSP-25.4
BT50 FMA31.75-075 31.75 60 40 75 22 7 12.7 M16xP2.0 FMSP-31.75
(BTT50)
FMA38.1-075 38.1 80 50 75 26 9 15.9 M20xP2.5 FMSP-38.1
FMB16-045S ̣ 16 32 20 45 17 3.8 8 M8xP1.25 FMSP-16
FMB22-045 22 45 28 45 18 5 10 M10xP1.5 FMSP-22
BT30 FMB22-045S ̣ 22 40 28 45 18 5 10 M10xP1.5 FMSP-22
(BTT30)
FMB27-045 27 58 33 45 20 6 12 M12xP1.75 FMSP-27
FMB27-045S ̣ 27 48 33 45 20 6 12 M12xP1.75 FMSP-27
FMB16-045S ̣ 16 32 20 45 17 3.8 8 M8xP1.25 FMSP-16
FMB22-045 22 48 28 45 18 5 10 M10xP1.5 FMSP-22
FMB22-045S ̣ 22 40 28 45 18 5 10 M10xP1.5 FMSP-22
FMB27-060 27 58 33 60 20 6 12 M12xP1.75 FMSP-27
BT40 FMB27-060S ̣ 27 48 33 60 20 6 12 M12xP1.75 FMSP-27
(BTT40)
FMB32-060 32 78 40 60 22 7 14 M16xP2.0 FMSP-32
FMB32-060S ̣ 32 58 40 60 22 7 14 M16xP2.0 FMSP-32
FMB40-060 40 79 50 60 26 8.5 15.9 M20xP2.5 FMSP-40
FMB40-060S ̣ 40 76 50 60 26 8.3 15.9 M20xP2.5 FMSP-40
FMB27-090 27 58 33 90 20 6 12 M12xP1.75 FMSP-27
FMB27-090S ̣ 27 48 33 90 20 6 12 M12xP1.75 FMSP-27
BT50 FMB32-090 32 78 40 90 22 7 14 M16xP2.0 FMSP-32
(BTT50) FMB32-090S ̣ 32 58 40 90 22 7 14 M16xP2.0 FMSP-32
FMB40-090 40 80 50 90 26 8.5 15.9 M20xP2.5 FMSP-40
FMB40-090S ̣ 40 76 50 90 26 8.3 15.9 M20xP2.5 FMSP-40
Remarks / 猋戢 Applications / 䛑አ
̣襑蟴ݳ SANDVIK ᶎ柮ڏԏڏ಩憒໒疳ੑ
APPLY TO SANDVIKŇS FACE MILLER.
Face Milling
ᶎ柮
80 PARFAITE TOOL CO., LTD.
