P. 37

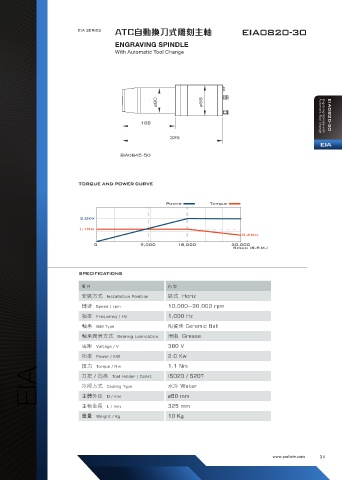

EIA SERIES ATC自動換刀式雕刻主軸 EIA0820-30
ENGRAVING SPINDLE
With Automatic Tool Change
PCD.145
(6)-M8
ø80 ø98
ø120
168 Automatic Tool Change Engraving Spindle with
EIA0820-30
325 478
EIA
EIA0845-50
EIA1275-24
TORQUE AND POWER CURVE
PCD.145
ø80 Power ø98 Torque
(6)-M8
2.0kw
168
1.1Nm ø120
325 0.6Nm
0 9,000 18,000 30,000
Speed (R.P.M.)
EIA0827-40 500
SPECIFICATIONS
EIA1285-30
項 目 內 容
安裝方式 Installation Position 臥式 Horiz
ø100
轉速 Speed / rpm 10,000~30,000 rpm
頻率 Frequency / Hz 1,000 Hz PCD.145
軸承 Ball Type 陶瓷珠 Ceramic Ball (6)-M8
457
軸承潤滑方式 Bearing Lubrication 滑脂 Grease
電壓 Voltage / V 380 V
EIA1037-30 ø120
功率 Power / KW 2.0 Kw
扭力 Torque / Nm 1.1 Nm
EIA 冷卻方式 Cooling Type 水冷 Water 518
ISO20 / S20T
刀把 / 筒夾 Tool Holder / Collet
ø80 mm
主體外徑 D / mm
主軸全長 L / mm
ø100 325 mm EIA1291-30
重量 Weight / Kg 10 Kg
487
EIA1048-30 www.parfaite.com 34
