PCD.145
(6)-M8
ø98
ø80
168
325
EIA0845-50
EIA1275-24
PCD.145 ø120 478
ø80 ø98
(6)-M8
168

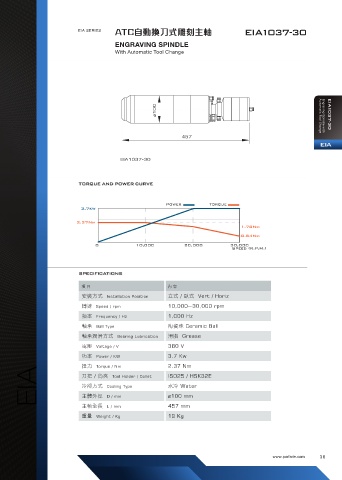

EIA SERIES ATC自動換刀式雕刻主軸 EIA1037-30 ø120
ENGRAVING SPINDLE
325
With Automatic Tool Change
EIA0827-40
500
EIA1285-30
ø100 Automatic Tool Change Engraving Spindle with EIA1037-30
PCD.145
(6)-M8
457
EIA
ø120
EIA1037-30
TORQUE AND POWER CURVE 518
Power Torque
3.7kw EIA1291-30
ø100
2.37Nm
1.78Nm
0.84Nm
0 10,000 487 30,000
20,000
Speed (R.P.M.)
EIA1048-30
SPECIFICATIONS
項 目 內 容
安裝方式 Installation Position 立式 / 臥式 Vert / Horiz
轉速 Speed / rpm 10,000~30,000 rpm
頻率 Frequency / Hz 1,000 Hz
軸承 Ball Type 陶瓷珠 Ceramic Ball
軸承潤滑方式 Bearing Lubrication 滑脂 Grease
電壓 Voltage / V 380 V
功率 Power / KW 3.7 Kw
扭力 Torque / Nm 2.37 Nm
EIA 冷卻方式 Cooling Type 水冷 Water
ISO25 / HSK32E
刀把 / 筒夾 Tool Holder / Collet
ø100 mm
主體外徑 D / mm
主軸全長 L / mm
19 Kg
重量 Weight / Kg 457 mm
www.parfaite.com 36
