ISO

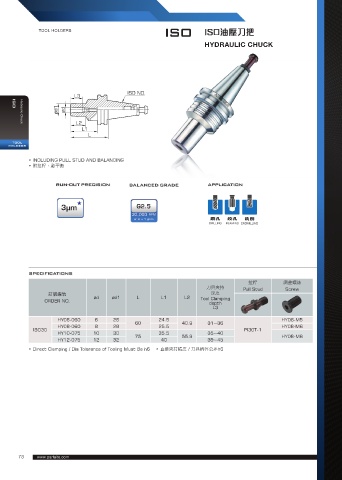

TOOL HOLDERS ISO油壓刀把

HYDRAULIC CHUCK

ISO

TOOL Hydraulic Chuck
HOLDERS
• INCLUDING PULL STUD AND BALANCING
• 附拉桿、動平衡

RUN-OUT PRECISION BALANCED GRADE APPLICATION

3µm G2.5

30,000 RPM
or U ≤ 1 gmm

SPECIFICATIONS
拉桿 調整螺絲
刀具夾持 Pull Stud Screw
訂購編號 ød ød1 L L1 L2 深度
ORDER NO. Tool Clamping
depth
L3
HY06-060 6 26 60 24.5 40.9 31~36 HY06-M5
HY08-060 8 28 25.5 HY08-M6
ISO30 PI30T-1
HY10-075 10 30 75 35.5 55.9 35~40 HY08-M6
HY12-075 12 32 40 39~45
• Direct Clamping / Dia Tolerance of Tooling Must Be h6 • 直接夾持精度 / 刀具柄徑公差h6
