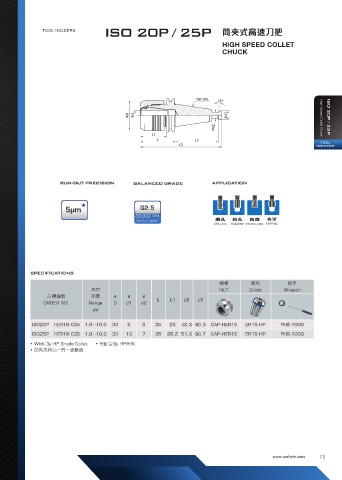

P. 77
ISO 20P / 25P
TOOL HOLDERS 筒夾式高速刀把
HIGH SPEED SLIM COLLET HIGH SPEED COLLET
CHUCK CHUCK
ISO 20P / 25P
High Speed Collet Chuck
TOOL
HOLDERS
RUN-OUT PRECISION BALANCED GRADE APPLICATION
5µm G2.5
30,000 RPM
or U ≤ 1 gmm
SPECIFICATIONS
螺帽 筒夾 扳手
夾持 NUT Collet Wrench
訂購編號 範圍 ø ø ø L L1 L2 L3
ORDER NO. Range D d1 d2
ød
ISO20P HER16-035 1.0~10.0 30 9 6 35 26 42.3 80.3 CAP-HER16 ER16-HP PHS-R300
ISO25P HER16-035 1.0~10.0 30 10 7 35 26.2 51.3 90.7 CAP-HER16 ER16-HP PHS-R300
• With 3µ HP Grade Collet • 需配合3µ HP筒夾
• 筒夾夾持為一對一整數值
www.parfaite.com 72
