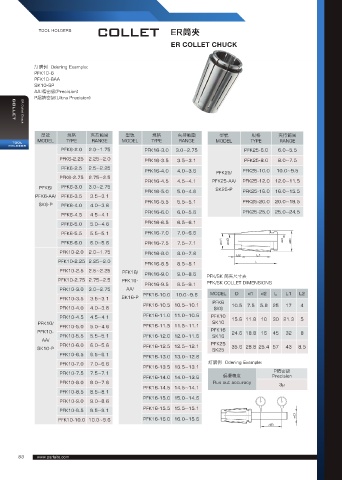

Page 88 - 普慧2021主軸
P. 88
TOOL HOLDERS COLLET ER筒夾
ER COLLET CHUCK
訂購例 Odering Example:
PFK10-6
PFK10-6AA
SK10-6P
AA:精密級(Precision)
P超精密級(Ultra Precision)
COLLET
ER Collet Chuck
型號 規格 夾持範圍 型號 規格 夾持範圍 型號 規格 夾持範圍
MODEL TYPE RANGE MODEL TYPE RANGE MODEL TYPE RANGE
TOOL
HOLDERS
PFK6-2.0 2.0~1.75 PFK16-3.0 3.0~2.75 PFK25-6.0 6.0~5.5
PFK6-2.25 2.25~2.0 PFK16-3.5 3.5~3.1 PFK25-8.0 8.0~7.5
PFK6-2.5 2.5~2.25
PFK16-4.0 4.0~3.6 PFK25/ PFK25-10.0 10.0~9.5
PFK6-2.75 2.75~2.5
PFK16-4.5 4.5~4.1 PFK25-AA/ PFK25-12.0 12.0~11.5
PFK6/ PFK6-3.0 3.0~2.75 SK25-P
PFK16-5.0 5.0~4.6 PFK25-16.0 16.0~15.5
PFK6-AA/ PFK6-3.5 3.5~3.1
PFK16-5.5 5.5~5.1 PFK25-20.0 20.0~19.5
SK6-P PFK6-4.0 4.0~3.6
PFK16-6.0 6.0~5.6 PFK25-25.0 25.0~24.5
PFK6-4.5 4.5~4.1
PFK6-5.0 5.0~4.6 PFK16-6.5 6.5~6.1
PFK6-5.5 5.5~5.1 PFK16-7.0 7.0~6.6
PFK6-6.0 6.0~5.6 PFK16-7.5 7.5~7.1
PFK10-2.0 2.0~1.75 PFK16-8.0 8.0~7.6
PFK10-2.25 2.25~2.0
PFK16-8.5 8.5~8.1
PFK10-2.5 2.5~2.25 PFK16/ PFK16-9.0 9.0~8.6
PFK10-2.75 2.75~2.5 PFK16- PFK/SK 筒夾尺寸表
PFK16-9.5 9.5~9.1 PFK/SK COLLET DIMENSIONS
PFK10-3.0 3.0~2.75 AA/
PFK16-10.0 10.0~9.6 MODEL D d1 d2 L L1 L2
PFK10-3.5 3.5~3.1 SK16-P
PFK16-10.5 10.5~10.1 PFK6 10.5 7.5 5.8 25 17 4
PFK10-4.0 4.0~3.6 SK6
PFK10-4.5 4.5~4.1 PFK16-11.0 11.0~10.6 PFK10 15.6 11.8 10 30 21.3 5
PFK10/ SK10
PFK10-5.0 5.0~4.6 PFK16-11.5 11.5~11.1
PFK10- PFK16 24.6 18.8 16 45 32 8
PFK10-5.5 5.5~5.1 PFK16-12.0 12.0~11.6 SK16
AA/
PFK10-6.0 6.0~5.6 PFK16-12.5 12.5~12.1 PFK25 35.6 28.8 25.4 57 43 8.5
SK10-P SK25
PFK10-6.5 6.5~6.1 PFK16-13.0 13.0~12.6
PFK10-7.0 7.0~6.6 訂購例 Odering Example:
PFK16-13.5 13.5~13.1
PFK10-7.5 7.5~7.1 P精密級
PFK16-14.0 14.0~13.6 偏擺精度 Precision
PFK10-8.0 8.0~7.6 Run out accuracy 3µ
PFK16-14.5 14.5~14.1
PFK10-8.5 8.5~8.1
PFK16-15.0 15.0~14.6
PFK10-9.0 9.0~8.6
PFK10-9.5 9.5~9.1 PFK16-15.5 15.5~15.1
PFK10-10.0 10.0~9.6 PFK16-16.0 16.0~15.6
