P. 85
BTN

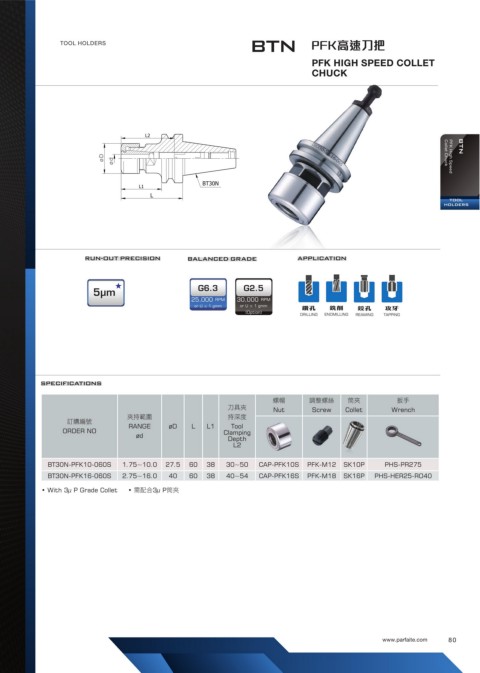

TOOL HOLDERS PFK高速刀把
ER COLLET CHUCK PFK HIGH SPEED COLLET
CHUCK
L2
ø D ø d Collet Chuck PFK High Speed BTN
BT30N
L1
L
TOOL
HOLDERS
RUN-OUT PRECISION BALANCED GRADE APPLICATION
5µm G6.3 G2.5
25,000 RPM 30,000 RPM
or U ≤ 1 gmm or U ≤ 1 gmm
(Option)
SPECIFICATIONS
螺帽 調整螺絲 筒夾 扳手
刀具夾 Nut Screw Collet Wrench
夾持範圍 持深度
訂購編號 RANGE øD L L1 Tool
ORDER NO Clamping
ød Depth
L2
BT30N-PFK10-060S 1.75~10.0 27.5 60 38 30~50 CAP-PFK10S PFK-M12 SK10P PHS-PR275
BT30N-PFK16-060S 2.75~16.0 40 60 38 40~54 CAP-PFK16S PFK-M18 SK16P PHS-HER25-RO40
• With 3µ P Grade Collet • 需配合3µ P筒夾
