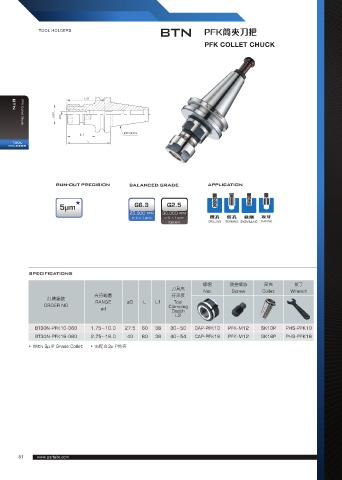

TOOL HOLDERS PFK筒夾刀把

PFK COLLET CHUCK

BTN

TOOL PFK Collet Chuck
HOLDERS

RUN-OUT PRECISION BALANCED GRADE APPLICATION

5µm G6.3 G2.5
25,000 RPM 30,000 RPM
or U ≤ 1 gmm or U ≤ 1 gmm
(Option)

SPECIFICATIONS

螺帽 調整螺絲 筒夾 扳手
刀具夾 Nut Screw Collet Wrench
夾持範圍 持深度
訂購編號 RANGE øD L L1 Tool
ORDER NO Clamping
ød Depth
L2

BT30N-PFK10-060 1.75~10.0 27.5 60 38 30~50 CAP-PFK10 PFK-M12 SK10P PHS-PFK10
BT30N-PFK16-060 2.75~16.0 40 60 38 40~54 CAP-PFK16 PFK-M12 SK16P PHS-PFK16
• With 3µ P Grade Collet • 需配合3µ P筒夾
