P. 101

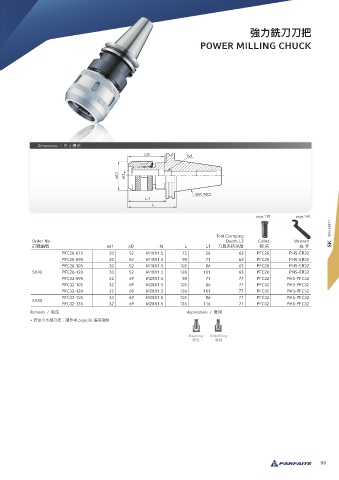

強力銑刀刀把
POWER MILLING CHUCK
Dimensions / 尺寸標示
page.118 page.148
SK DIN 69871
Tool Clamping
Order No. Depth L2 Collet Wrench
訂購編號 ød1 øD M L L1 刀具夾持深度 筒 夾 扳 手
PFC20-075 20 52 M18X1.5 75 56 63 PFC20 PHS-ER32
PFC20-090 20 52 M18X1.5 90 71 63 PFC20 PHS-ER32
PFC20-105 20 52 M18X1.5 105 86 63 PFC20 PHS-ER32
SK40 PFC20-120 20 52 M18X1.5 120 101 63 PFC20 PHS-ER32
PFC32-090 32 69 M28X1.5 90 71 77 PFC32 PHS-PFC32
PFC32-105 32 69 M28X1.5 105 86 77 PFC32 PHS-PFC32
PFC32-120 32 69 M28X1.5 120 101 77 PFC32 PHS-PFC32
PFC32-105 32 69 M28X1.5 105 86 77 PFC32 PHS-PFC32
SK50
PFC32-135 32 69 M28X1.5 135 116 77 PFC32 PHS-PFC32
Remarks / 備註 Applications / 應用
• 若需出水型刀把，請參考 page.26 選用說明
Reaming Endmilling
鉸孔 銑削
99
