SK
SK

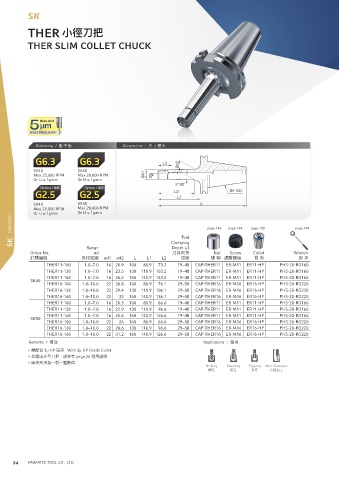

THER 小徑刀把

THER SLIM COLLET CHUCK

Balancing / 動平衡 Dimensions / 尺寸標示

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm Or U ≤ 1gmm

SK40 SK50
Max.25,000 RPM Max.20,000 RPM
Or U ≤ 1gmm
Or U ≤ 1gmm
SK DIN 69871 Tool page.146 page.144 page.120 page.149

Depth L3
Range Clamping
Order No. ød 刀具夾持 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 ød2 L L1 L2 深度 螺 帽 調整螺絲 筒 夾 扳 手
THER11-100 1.0~7.0 16 20.9 100 80.9 73.2 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-130 1.0~7.0 16 23.5 130 110.9 103.2 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-160 1.0~7.0 16 26.2 160 140.9 133.2 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
SK40
THER16-100 1.0~10.0 22 26.8 100 80.9 76.1 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-130 1.0~10.0 22 29.4 130 110.9 106.1 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-160 1.0~10.0 22 32 160 140.9 136.1 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER11-100 1.0~7.0 16 20.3 100 80.9 66.6 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-130 1.0~7.0 16 22.9 130 110.9 96.6 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
THER11-160 1.0~7.0 16 25.6 160 140.9 126.6 19~48 CAP-THER11 ER-M11 ER11-HP PHS-20-RO160
SK50
THER16-100 1.0~10.0 22 26 100 80.9 66.6 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-130 1.0~10.0 22 28.6 130 110.9 96.6 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
THER16-160 1.0~10.0 22 31.2 160 140.9 126.6 29~58 CAP-THER16 ER-M16 ER16-HP PHS-20-RO220
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
• 筒夾夾持為一對一整數值
Drilling Reaming Tapping Mini Diameter
鑽孔 鉸孔 攻牙 小徑加工

TD.
ARF
94
94 PARFAITE TOOL CO., LTD.
