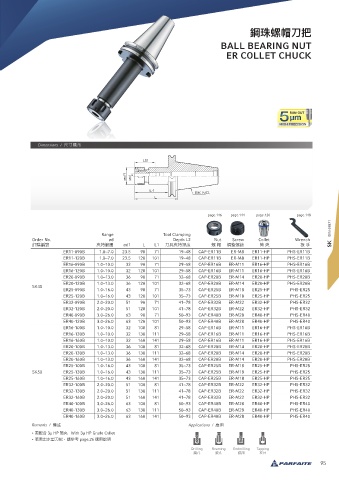

Page 97 - 普慧2020刀把(電子書版)

鋼珠螺帽刀把

BALL BEARING NUT
ER COLLET CHUCK

Dimensions / 尺寸標示

page.146 page.144 page.120 page.148
SK DIN 69871

Range Tool Clamping
Order No. ød Depth L2 Nut Screw Collet Wrench
訂購編號 夾持範圍 ød1 L L1 刀具夾持深度 螺 帽 調整螺絲 筒 夾 扳 手
ER11-090B 1.0~7.0 23.5 90 71 19~48 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER11-120B 1.0~7.0 23.5 120 101 19~48 CAP-ER11B ER-M8 ER11-HP PHS-ER11B
ER16-090B 1.0~10.0 32 90 71 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-120B 1.0~10.0 32 120 101 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-090B 1.0~13.0 36 90 71 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-120B 1.0~13.0 36 120 101 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
SK40
ER25-090B 1.0~16.0 43 90 71 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-120B 1.0~16.0 43 120 101 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER32-090B 2.0~20.0 51 90 71 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-120B 2.0~20.0 51 120 101 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER40-090B 3.0~26.0 63 90 71 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-120B 3.0~26.0 63 120 101 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER16-100B 1.0~10.0 32 100 81 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-130B 1.0~10.0 32 130 111 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER16-160B 1.0~10.0 32 160 141 29~58 CAP-ER16B ER-M11 ER16-HP PHS-ER16B
ER20-100B 1.0~13.0 36 100 81 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-130B 1.0~13.0 36 130 111 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER20-160B 1.0~13.0 36 160 141 32~68 CAP-ER20B ER-M14 ER20-HP PHS-ER20B
ER25-100B 1.0~16.0 43 100 81 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
SK50 ER25-130B 1.0~16.0 43 130 111 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER25-160B 1.0~16.0 43 160 141 35~73 CAP-ER25B ER-M18 ER25-HP PHS-ER25
ER32-100B 2.0~20.0 51 100 81 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-130B 2.0~20.0 51 130 111 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER32-160B 2.0~20.0 51 160 141 41~78 CAP-ER32B ER-M22 ER32-HP PHS-ER32
ER40-100B 3.0~26.0 63 100 81 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-130B 3.0~26.0 63 130 111 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
ER40-160B 3.0~26.0 63 160 141 50~93 CAP-ER40B ER-M28 ER40-HP PHS-ER40
Remarks / 備註 Applications / 應用
• 需配合 3µ HP 筒夾 With 3µ HP Grade Collet
• 若需出水型刀把，請參考 page.26 選用說明
Drilling Reaming Endmilling Tapping
鑽孔 鉸孔 銑削 攻牙
95
