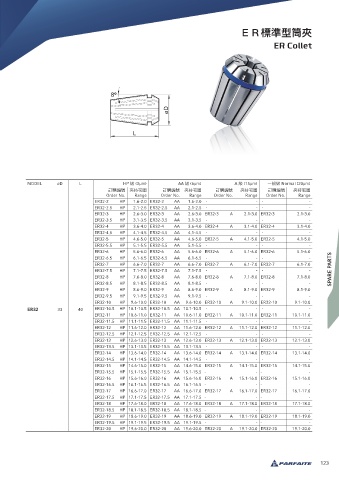

ＥＲ標準型筒夾

ER Collet

MODEL øD L HP 級 (3μm) AA 級 (6μm) A 級 (15μm) 一般級 Normal (20μm)
訂購編號 夾持範圍 訂購編號 夾持範圍 訂購編號 夾持範圍 訂購編號 夾持範圍
Order No. Range Order No. Range Order No. Range Order No. Range
ER32-2 HP 1.6-2.0 ER32-2 AA 1.6-2.0 - - - -
ER32-2.5 HP 2.1-2.5 ER32-2.5 AA 2.1-2.5 - - - -
ER32-3 HP 2.6-3.0 ER32-3 AA 2.6-3.0 ER32-3 A 2.1-3.0 ER32-3 2.1-3.0
ER32-3.5 HP 3.1-3.5 ER32-3.5 AA 3.1-3.5 - - - -
ER32-4 HP 3.6-4.0 ER32-4 AA 3.6-4.0 ER32-4 A 3.1-4.0 ER32-4 3.1-4.0
ER32-4.5 HP 4.1-4.5 ER32-4.5 AA 4.1-4.5 - - - -
ER32-5 HP 4.6-5.0 ER32-5 AA 4.6-5.0 ER32-5 A 4.1-5.0 ER32-5 4.1-5.0
ER32-5.5 HP 5.1-5.5 ER32-5.5 AA 5.1-5.5 - - - -
ER32-6 HP 5.6-6.0 ER32-6 AA 5.6-6.0 ER32-6 A 5.1-6.0 ER32-6 5.1-6.0
ER32-6.5 HP 6.1-6.5 ER32-6.5 AA 6.1-6.5 - - - -
ER32-7 HP 6.6-7.0 ER32-7 AA 6.6-7.0 ER32-7 A 6.1-7.0 ER32-7 6.1-7.0
ER32-7.5 HP 7.1-7.5 ER32-7.5 AA 7.1-7.5 - - - - SPARE PARTS
ER32-8 HP 7.6-8.0 ER32-8 AA 7.6-8.0 ER32-8 A 7.1-8.0 ER32-8 7.1-8.0
ER32-8.5 HP 8.1-8.5 ER32-8.5 AA 8.1-8.5 - - - -
ER32-9 HP 8.6-9.0 ER32-9 AA 8.6-9.0 ER32-9 A 8.1-9.0 ER32-9 8.1-9.0
ER32-9.5 HP 9.1-9.5 ER32-9.5 AA 9.1-9.5 - - - -
ER32-10 HP 9.6-10.0 ER32-10 AA 9.6-10.0 ER32-10 A 9.1-10.0 ER32-10 9.1-10.0
ER32 33 40 ER32-10.5 HP 10.1-10.5 ER32-10.5 AA 10.1-10.5 - - - -
ER32-11 HP 10.6-11.0 ER32-11 AA 10.6-11.0 ER32-11 A 10.1-11.0 ER32-11 10.1-11.0
ER32-11.5 HP 11.1-11.5 ER32-11.5 AA 11.1-11.5 - - - -
ER32-12 HP 11.6-12.0 ER32-12 AA 11.6-12.0 ER32-12 A 11.1-12.0 ER32-12 11.1-12.0
ER32-12.5 HP 12.1-12.5 ER32-12.5 AA 12.1-12.5 - - - -
ER32-13 HP 12.6-13.0 ER32-13 AA 12.6-13.0 ER32-13 A 12.1-13.0 ER32-13 12.1-13.0
ER32-13.5 HP 13.1-13.5 ER32-13.5 AA 13.1-13.5 - - - -
ER32-14 HP 13.6-14.0 ER32-14 AA 13.6-14.0 ER32-14 A 13.1-14.0 ER32-14 13.1-14.0
ER32-14.5 HP 14.1-14.5 ER32-14.5 AA 14.1-14.5 - - - -
ER32-15 HP 14.6-15.0 ER32-15 AA 14.6-15.0 ER32-15 A 14.1-15.0 ER32-15 14.1-15.0
ER32-15.5 HP 15.1-15.5 ER32-15.5 AA 15.1-15.5 - - - -
ER32-16 HP 15.6-16.0 ER32-16 AA 15.6-16.0 ER32-16 A 15.1-16.0 ER32-16 15.1-16.0
ER32-16.5 HP 16.1-16.5 ER32-16.5 AA 16.1-16.5 - - - -
ER32-17 HP 16.6-17.0 ER32-17 AA 16.6-17.0 ER32-17 A 16.1-17.0 ER32-17 16.1-17.0
ER32-17.5 HP 17.1-17.5 ER32-17.5 AA 17.1-17.5 - - - -
ER32-18 HP 17.6-18.0 ER32-18 AA 17.6-18.0 ER32-18 A 17.1-18.0 ER32-18 17.1-18.0
ER32-18.5 HP 18.1-18.5 ER32-18.5 AA 18.1-18.5 - - - -
ER32-19 HP 18.6-19.0 ER32-19 AA 18.6-19.0 ER32-19 A 18.1-19.0 ER32-19 18.1-19.0
ER32-19.5 HP 19.1-19.5 ER32-19.5 AA 19.1-19.5 - - - -
ER32-20 HP 19.6-20.0 ER32-20 AA 19.6-20.0 ER32-20 A 19.1-20.0 ER32-20 19.1-20.0
