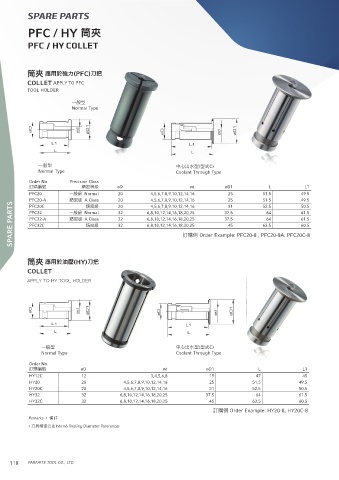

SPARE PARTS

PFC / HY 筒夾

PFC / HY COLLET

筒夾 應用於強力(PFC)刀把

COLLET APPLY TO PFC
TOOL HOLDER

一般型
Normal Type

一般型 中心出水型(型式C)
Normal Type Coolant Through Type
Order No. Precision Class
訂購編號 精密等級 øD ød øD1 L L1
PFC20 一般級 Normal 20 4,5,6,7,8,9,10,12,14,16 25 51.5 49.5
PFC20-A 精密級 A Class 20 4,5,6,7,8,9,10,12,14,16 25 51.5 49.5
SPARE PARTS PFC32 一般級 Normal 32 6,8,10,12,14,16,18,20,25 37.5 63.5 61.5
52.5
31
PFC20C
精密級
20
50.5
4,5,6,7,8,9,10,12,14,16
64
精密級 A Class
PFC32-A
61.5
6,8,10,12,14,16,18,20,25
32
64
37.5
精密級
PFC32C
32
45
60.5
6,8,10,12,14,16,18,20,25
訂購例 Order Example: PFC20-8 , PFC20-8A, PFC20C-8
筒夾 應用於油壓(HY)刀把
COLLET
APPLY TO HY TOOL HOLDER

一般型 中心出水型(型式C)
Normal Type Coolant Through Type
Order No.
訂購編號 øD ød øD1 L L1
HY12C 12 3,4,5,6,8 19 47 45
HY20 20 4,5,6,7,8,9,10,12,14,16 25 51.5 49.5
HY20C 20 4,5,6,7,8,9,10,12,14,16 31 52.5 50.5
HY32 32 6,8,10,12,14,16,18,20,25 37.5 64 61.5
HY32C 32 6,8,10,12,14,16,18,20,25 45 63.5 60.5
訂購例 Order Example: HY20-8, HY20C-8
Remarks / 備註
• 刀具柄徑公差 h6( h6 Tooling Diameter Tolerance)

118 PARFAITE TOOL CO., LTD.
