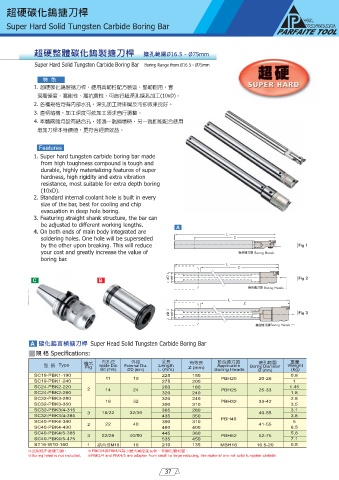

Page 38 - 2020普慧搪刀型錄

超硬碳化鎢搪刀桿

Super Hard Solid Tungsten Carbide Boring Bar

超硬整體碳化鎢製搪刀桿 搪孔範圍Ø16.5 - Ø75mm

Super Hard Solid Tungsten Carbide Boring Bar Boring Range from Ø16.5 - Ø75mm

特 色
1. 超硬碳化鎢製搪刀桿，使用高韌性配方製造，堅韌耐用，實
現高硬度、高剛性、高抗震性，可施行超深孔搪孔加工(10xD)。
2. 各種規格均有內部水孔，深孔加工時排屑及冷卻效果良好。
3. 直柄結構，加工深度可依加工須求自行調整。
4. 本體兩端均設有結合孔，如遇一端損壞時，另一端即能配合使用，
增加刀桿本身價值，更符合經濟效益。

Features
1. Super hard tungsten carbide boring bar made
from high toughness compound is tough and
durable, highly materializing features of super
hardness, high rigidity and extra vibration
resistance, most suitable for extra depth boring
(10xD).
2. Standard internal coolant hole is built in every
size of the bar, best for cooling and chip
evacuation in deep hole boring.
3. Featuring straight shank structure, the bar can
be adjusted to different working lengths.
4. On both ends of main body integrated are
soldering holes. One hole will be superseded
by the other upon breaking. This will reduce
your cost and greatly increase the value of
boring bar.

C B

A 碳化鎢直柄搪刀桿 Super Head Solid Tungsten Carbide Boring Bar

規格 Specifications:
重量
全長
內孔徑
外徑
有效長
搪孔範圍
型 號 Type 樣式 Inside Dia. External Dia. Length Z (mm) 接合搪刀頭 Boring Diameter Weight
Applicable
Fig
Ød (mm) ØD (mm) L (mm) Boring Heads Ø (mm) (kg)
SC19-PBK1-190 225 150 0.8
SC19-PBK1-240 11 19 275 200 PBH20 20-26 1
SC24-PBK2-220 2 260 180 1.45
SC24-PBK2-280 14 24 320 240 PBH25 25-33 1.8
SC32-PBK3-280 18 32 320 240 PBH32 33-42 2.8
SC32-PBK3-350 390 310 3.5
SC32-PBK3/4-315 3 18/22 32/39 365 280 40-55 3.1
SC32-PBK3/4-385 435 350 3.8
SC40-PBK4-340 2 22 40 390 310 PBH40 41-55 5
SC40-PBK4-430 480 400 6.5
SC40-PBK4/5-385 3 22/28 40/50 445 360 PBH52 52-75 5.6
SC40-PBK4/5-475 535 450 7.1
ST16-W10-160 1 結合牙M10 16 210 135 MBH16 16.5-20 0.5
※此規格不含搪刀頭。 ※PBK3/4與PBK4/5為小變大異徑延長桿，非碳化鎢材質。
※Boring head is not included. ※PBK3/4 and PBK4/5 are adapter from small to large reducing, the material are not solid tungsten carbide.
