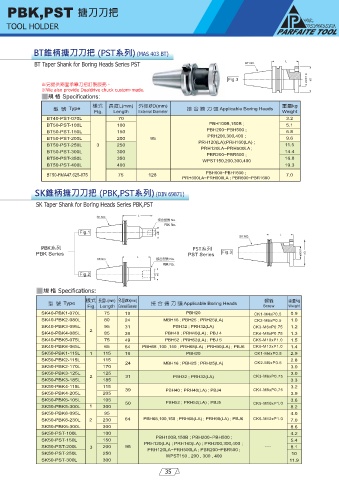

Page 36 - 2020普慧搪刀型錄

PBK,PST 搪刀刀把

TOOL HOLDER

BT錐柄搪刀刀把 (PST系列) (MAS 403 BT)
BT Taper Shank for Boring Heads Series PST

※另提供兩面承靠刀把訂製服務。
※We also provide Dualdrive chuck custom-made.
規格 Specifications:

型 號 Type 樣式 長度L(mm) 外徑ØD(mm) 接 合 搪 刀 頭 Applicable Boring Heads 重量kg
Fig.
Weight
External Diameter
Length
BT40-PST-070L 70 3.2
BT50-PST-100L 100 PBH100B,150B ; 5.1
BT50-PST-150L 150 PBH200~PBH500 ; 6.8
BT50-PST-200L 200 95 PRH200,300,400 ; 9.6
BT50-PST-250L 3 250 PRH120(LA);PRH160(LA) ; 11.5
PRH120LA~PRH500LA ;
BT50-PST-300L 300 PBR200~PBR500 ; 14.4
BT50-PST-350L 350 WPST150,200,300,400 16.8
BT50-PST-400L 400 19.3
BT50-FMA47.625-075 75 128 PBH600~PBH1600 ; 7.0
PRH600LA~PRH900LA ; PBR600~PBR1600

SK錐柄搪刀刀把 (PBK,PST系列) (DIN 69871)
SK Taper Shank for Boring Heads Series PBK,PST

SK
PBK No.
SK

PBK系列 PST系列
PBK Series PST Series
SK
PBK No.

規格 Specifications:

型 號 Type 樣式 長度L(mm) 外徑ØD(mm) 接 合 搪 刀 頭 Applicable Boring Heads 螺絲 重量kg
Fig. Length External Diameter Screw Weight
SK40-PBK1-070L 75 19 PBH20 CK1-M4xP0.5 0.9
SK40-PBK2-080L 80 24 MBH16 ; PBH25 ; PRH25(LA) CK2-M5xP0.5 1.0
SK40-PBK3-095L 95 31 PBH32 ; PRH32(LA) CK3-M6xP0.75 1.2
SK40-PBK4-085L 2 85 39 PBH40 ; PRH40(LA) ; PBJ 4 CK4-M8xP0.75 1.3
SK40-PBK5-075L 75 49 PBH52 ; PRH52(LA) ; PBJ 5 CK5-M10xP1.0 1.5
SK40-PBK6-065L 65 64 PBH68 ,100 ,150 ; PRH68(LA) ; PRH90(LA) ; PBJ6 CK6-M12xP1.0 1.4
SK50-PBK1-115L 1 115 19 PBH20 CK1-M4xP0.5 2.9
SK50-PBK2-115L 115 24 MBH16 ; PBH25 ; PRH25(LA) CK2-M5xP0.5 2.8
SK50-PBK2-170L 170 3.0
SK50-PBK3-125L 2 125 31 CK3-M6xP0.75 3.0
SK50-PBK3-185L 185 PBH32 ; PRH32(LA) 3.3
SK50-PBK4-115L 115 3.2
SK50-PBK4-205L 205 39 PBH40 ; PRH40(LA) ; PBJ4 CK4-M8xP0.75 3.9
SK50-PBK5-105L 105 50 PBH52 ; PRH52(LA) ; PBJ5 3.6
SK50-PBK5-300L 1 300 CK5-M10xP1.0 8.2
SK50-PBK6-095L 95 4.0
SK50-PBK6-230L 2 230 64 PBH68,100,150 ; PRH68(LA) ; PRH90(LA) ; PBJ6 CK6-M12xP1.0 7.0
SK50-PBK6-300L 300 8.6
SK50-PST-100L 100 4.2
SK50-PST-150L 150 PBH100B,150B ; PBH200~PBH500 ; 5.4
SK50-PST-200L 3 200 95 PRH120(LA) ; PRH160(LA) ; PRH200,300,400 ; ---- 8.1
PRH120LA~PRH500LA ; PBR200~PBR500 ;
SK50-PST-250L 250 WPST150 , 200 , 300 , 400 10
SK50-PST-300L 300 11.9
