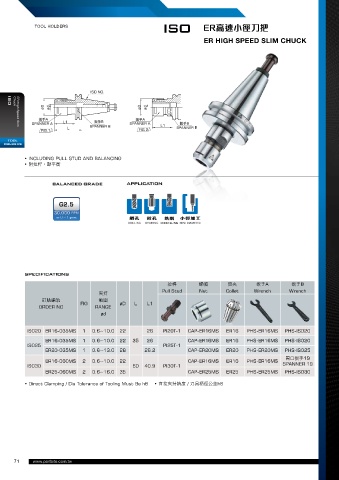

TOOL HOLDERS ISO ER高速小徑刀把

ER HIGH SPEED SLIM CHUCK

ISO
Chuck

TOOL ER High Speed Slim
HOLDERS

• INCLUDING PULL STUD AND BALANCING
• 附拉桿、動平衡

BALANCED GRADE APPLICATION

G2.5
30,000 RPM
or U ≤ 1 gmm

SPECIFICATIONS
拉桿 螺帽 筒夾 扳手A 扳手B
Pull Stud Nut Collet Wrench Wrench
夾持
訂購編號 FIG 範圍 øD L L1
ORDER NO RANGE
ød

ISO20 ER16-035MS 1 0.6~10.0 22 26 PI20T-1 CAP-ER16MS ER16 PHS-ER16MS PHS-ISO20
ER16-035MS 1 0.6~10.0 22 35 26 CAP-ER16MS ER16 PHS-ER16MS PHS-ISO20
ISO25 PI25T-1
ER20-035MS 1 0.6~13.0 28 26.2 CAP-ER20MS ER20 PHS-ER20MS PHS-ISO25
開口扳手19
ER16-060MS 2 0.6~10.0 22 CAP-ER16MS ER16 PHS-ER16MS
ISO30 60 40.9 PI30T-1 SPANNER 19
ER25-060MS 2 0.6~16.0 35 CAP-ER25MS ER25 PHS-ER25MS PHS-ISO30

• Direct Clamping / Dia Tolerance of Tooling Must Be h6 • 直接夾持精度 / 刀具柄徑公差h6
