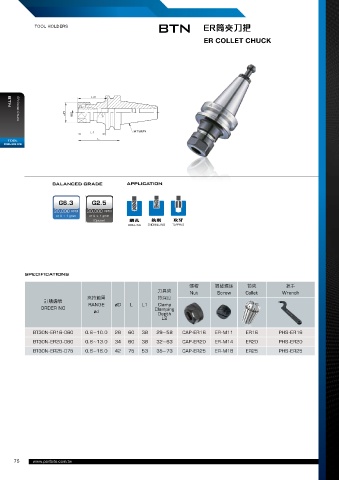

P. 76
TOOL HOLDERS BTN ER筒夾刀把
ER COLLET CHUCK
BTN
TOOL ER Collet Chuck
HOLDERS
BALANCED GRADE APPLICATION
G6.3 G2.5
30,000 RPM 30,000 RPM
or U ≤ 1 gmm or U ≤ 1 gmm
(Option)
SPECIFICATIONS
螺帽 調整螺絲 筒夾 扳手
刀具夾 Nut Screw Collet Wrench
夾持範圍 持深度
訂購編號 RANGE øD L L1 Clamp
ORDER NO Clamping
ød Depth
L2
BT30N-ER16-060 0.6~10.0 28 60 38 29~58 CAP-ER16 ER-M11 ER16 PHS-ER16
BT30N-ER20-060 0.6~13.0 34 60 38 32~63 CAP-ER20 ER-M14 ER20 PHS-ER20
BT30N-ER25-075 0.6~16.0 42 75 53 35~73 CAP-ER25 ER-M18 ER25 PHS-ER25
75 www.parfaite.com.tw
